Wind-tunnel measurements of air loads on split flaps (1934)
NASA Technical Reports Server (NTRS) · leaf 11

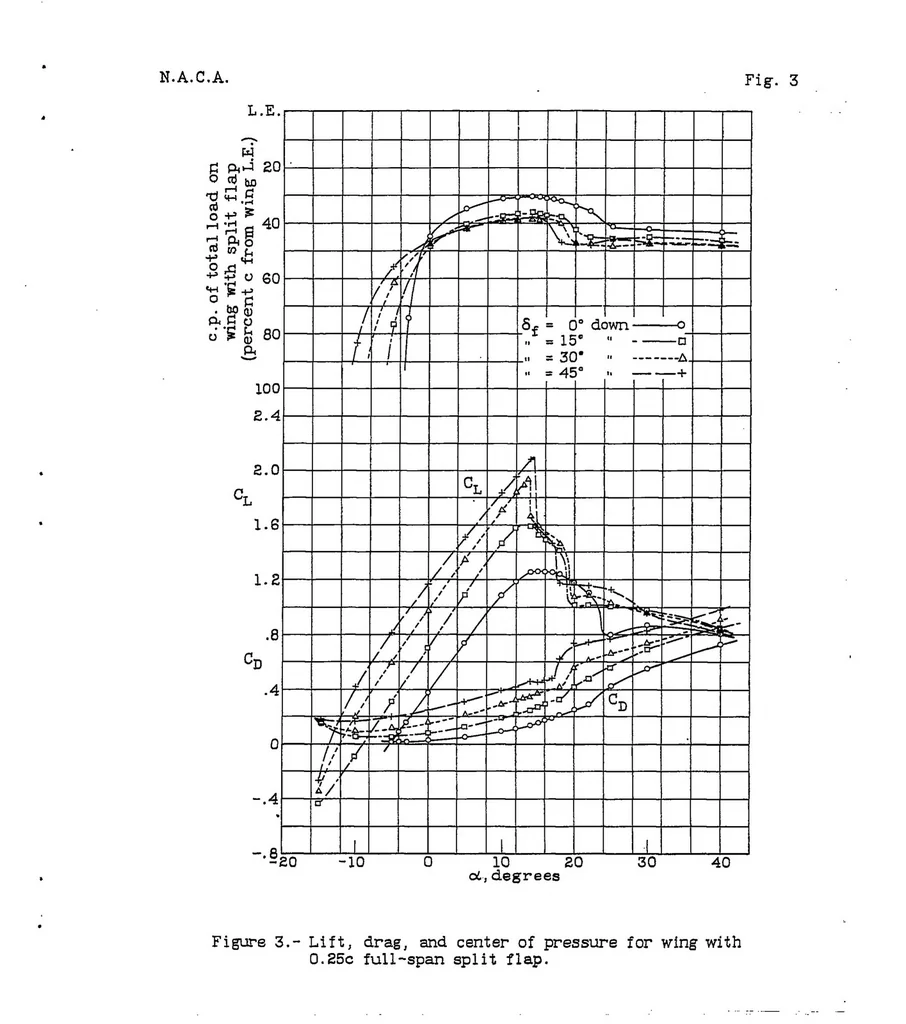

Figure 3.- Lift, drag, and center of pressure for wing with 0.25c full-span split flap.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
