Method for Rapid Graphical Evaluation of Cooled or Uncooled Turbojet and Turboprop Engine or Component Performance (effects of Variable Specific Heat Included) (1955)
NASA Technical Reports Server (NTRS) · leaf 43

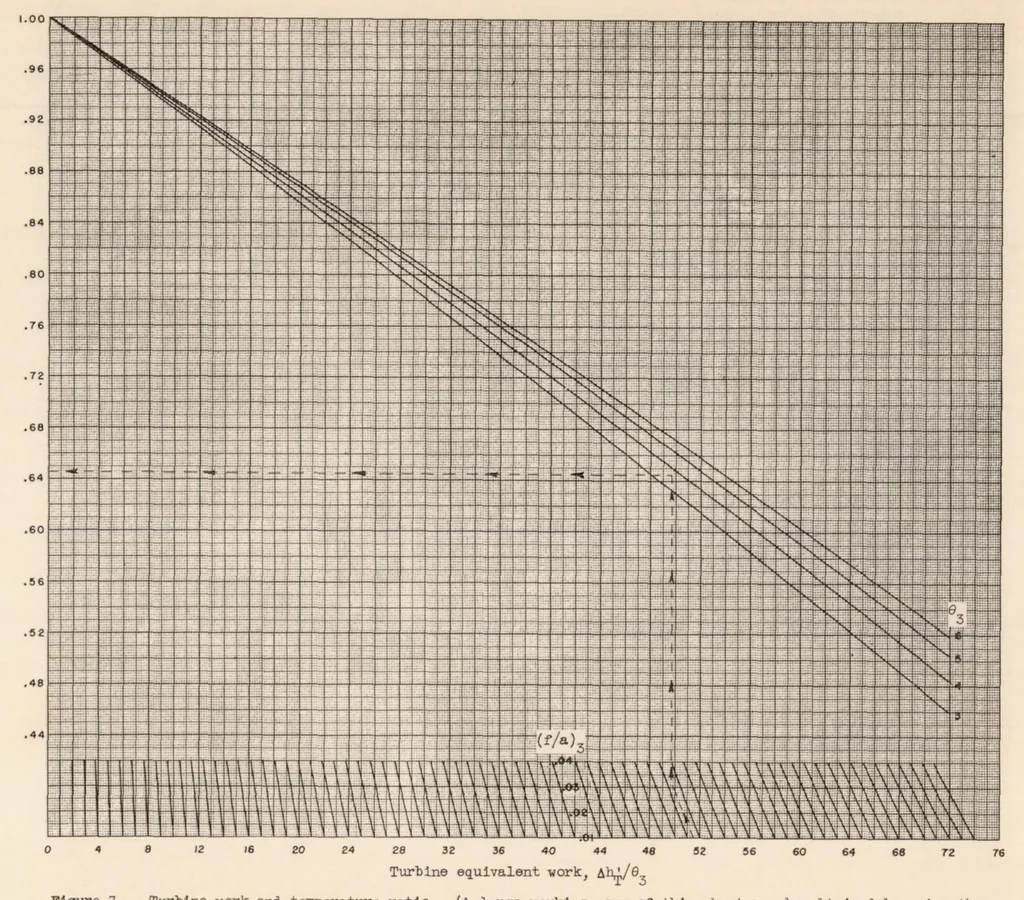

Figure 7. - Turbine work and temperature ratio. (A large working copy of this chart may be obtained by using the request card bound In the back of the report.)
