Development of Wing-steered Messerschmitt Gliders (1924)
NASA Technical Reports Server (NTRS) · leaf 6

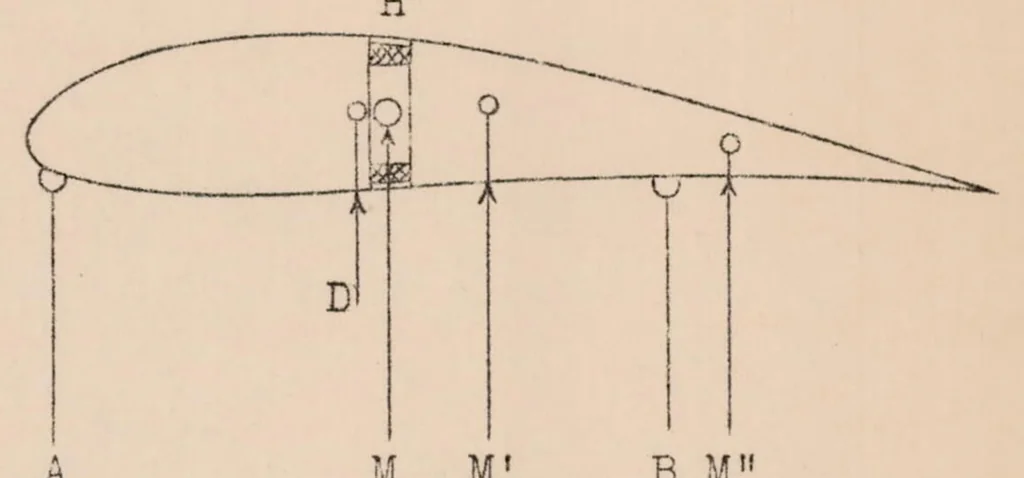

Fig.3 IKAtC.A, Technical Memorandum iJo,365 H … A M M» B M" Fig.3. Wing section of the Messerschmitt glider, S 12 A DoTvnward-stearing rope. B Upward-steering rope. D Center oi rotation of wing, M Center of pressure of S 10 wing section with angle of attack for minimum sinking speed. Center of pressure of S 12 wing section for the same angle of…
