Distribution of Pressure Over Model of the Upper Wing and Aileron of a Fokker D-VII Airplane (1927)
NASA Technical Reports Server (NTRS) · leaf 5

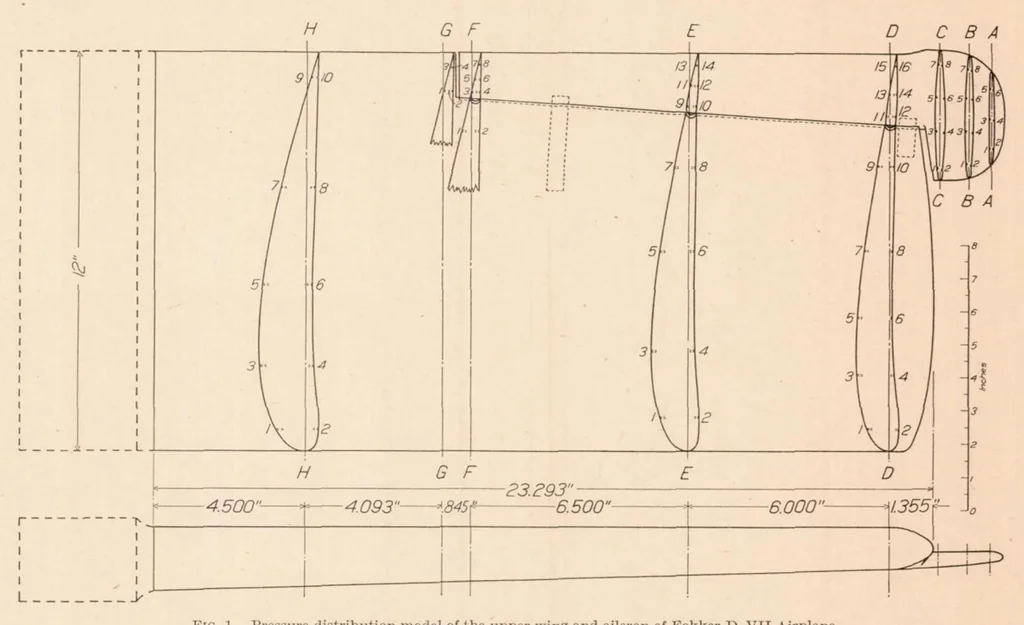

inated mahogany in which small brass tubes were inlaid. Figure 1 is a drawing of the model on which is shown the location of the pressure orifices. The aileron was constructed of brass. Two blanks were milled to contours and grooved; pressure tubes were inlaid, and then sweated together. The… … Fig. 1.—Pressure distribution model of the upper wing and aileron of Fokker D-VII Airplane model's surface. Figure"2 is an illustration of this assembly with the cover removed. In all 74 tubes were used. The model was mounted vertically at its root and could be rotated about a vertical axis. It…
