The British Klemm "Eagle" commercial airplane : a low-wing cantilever monoplane (1934)
NASA Technical Reports Server (NTRS) · leaf 9

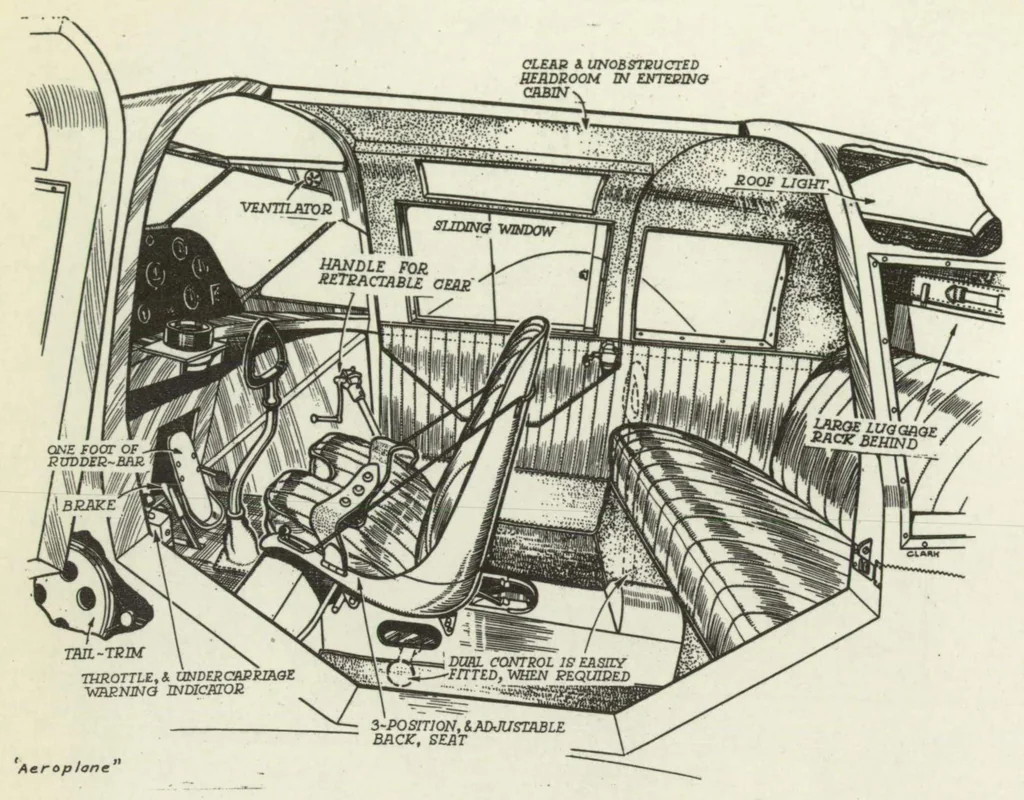

Figs. 4,6 N.A.C.A. Aircraft Ciroular No. 195 … Figure 4.-The commodious layout of the cabin of the Klemm Eagle airplane. The back of the seat folds forwards and dis- closes a locker for three large suitoases. Figure 6.-British Klemm Eagle details. On the left is shown how the spruce ribs are stabilized with stringers and carried over the box…
