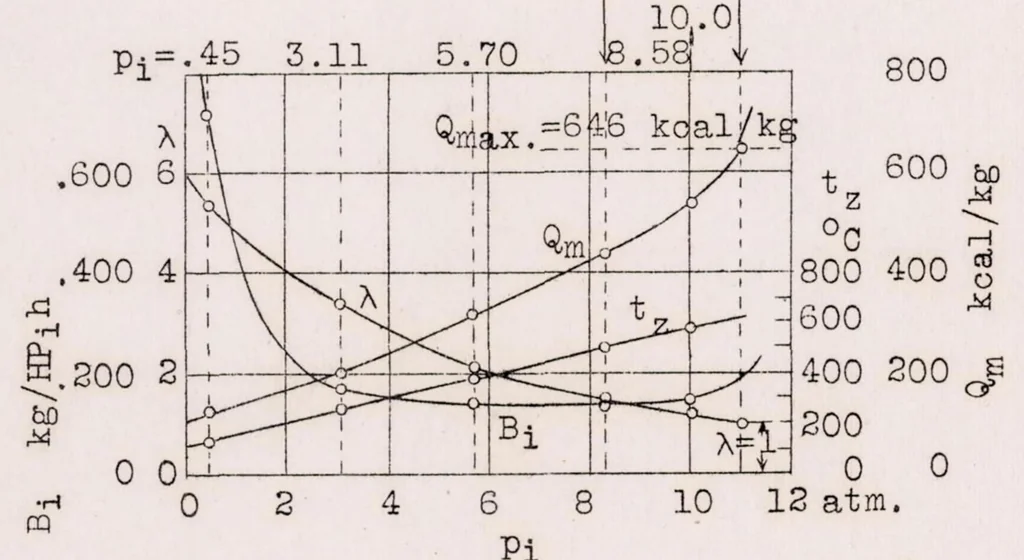

Figs.18,19. N.A.C.A. Technical Memorandum No.467 1.0 .8 .6 .4 .2 0 1.2 3 .4 .6 .8 1, 0 Load a = Ne/30 Fig.18 Heat distribution plotted against load at constant n = 1000 R.P.M. a =i x=l … Fig.19 Specific fuel consumption (per I.H P.), air excess \, heat value of mixture Qm, exhaust temperature tz, plotted against mean indicated pressure at constant n = 1000 R.P.M.
