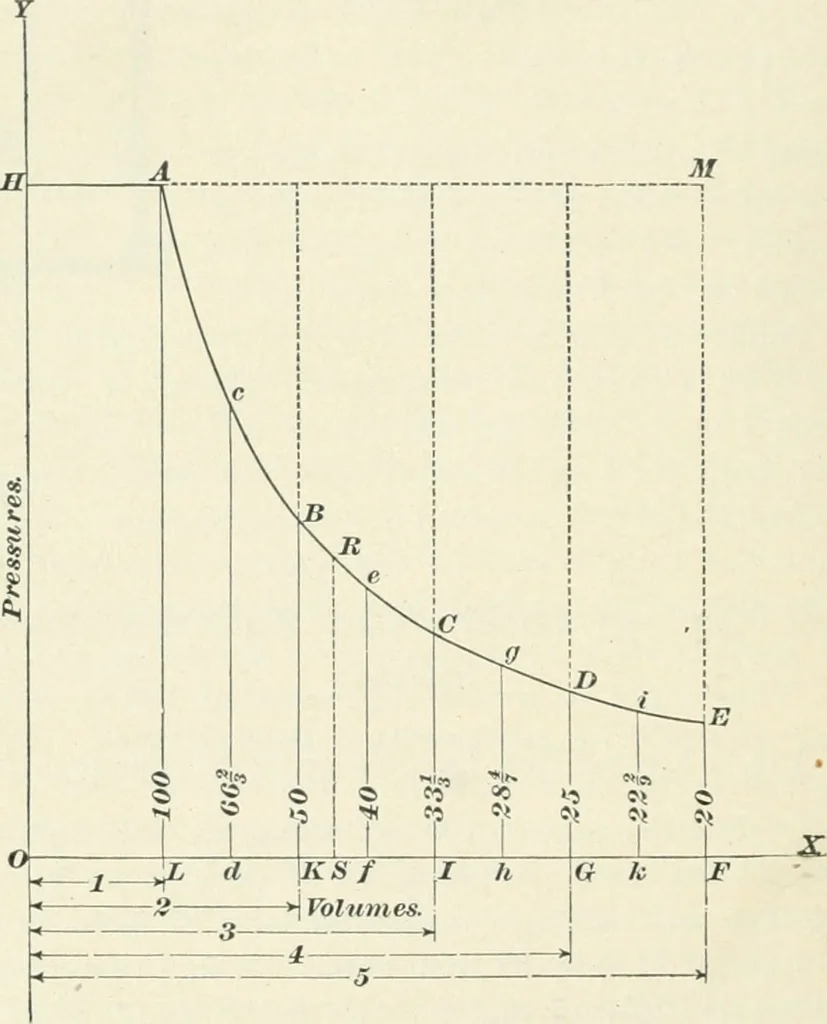

the piston reaches the point Z, no more air isadmitted, and as it begins to move away from the positionA L, the pressure begins to fall, the volume increasing inproportion to the distance of the piston from O Y. Thepressures corresponding to a number of different positions 4.»0 HEAT. of the piston,… … Fig. 223. At the points d, K, /, /, /i, G, k, F, erect ordinates, andmake them equal in length to the pressure at that point, to HEAT. 401 the scale of 1 in. = 20 lb.—that is, make c d— GGf \h.,B K —50 lb., etc., and through the points A, c, B, c, C, g, D, i, E,draw the curve shown in this figure.…
