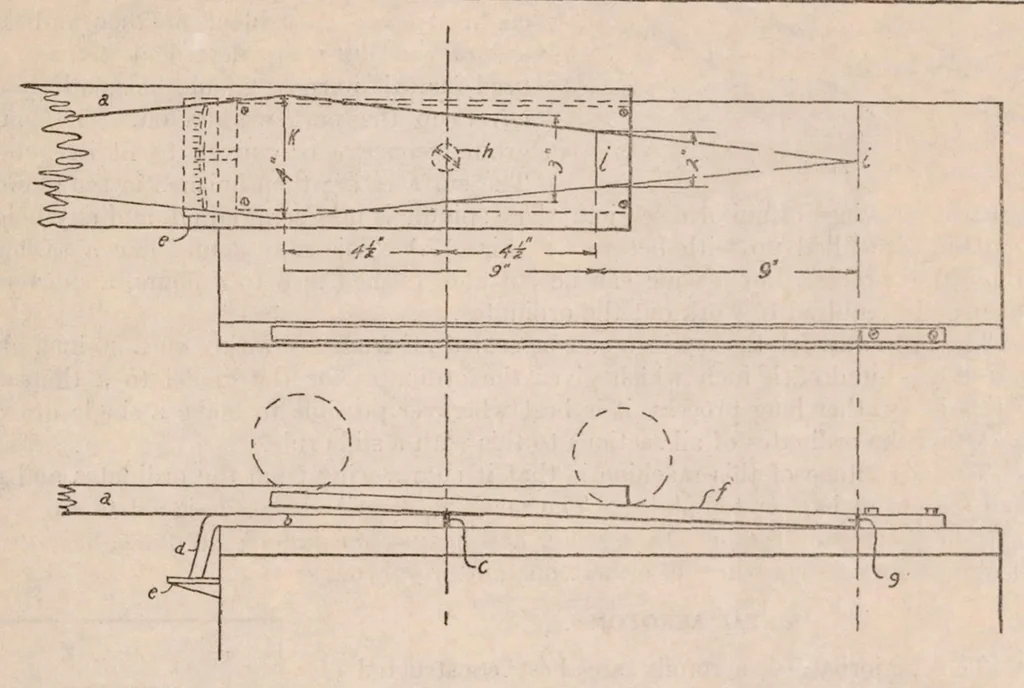

uniform section (when the spring is horizontal) and for setting the cutter to the proper height after sharpening. For cutting wood a two-bladed cutter £-inch wide is driven at 5,000 revolutions per minute by a belt directly from the motor. The material best suited for making models that are tested… … METHOD OFC(/TTL/VG W/A/GS WITH VARY IMG GHOtfO AVO WITH STRAIGHT UA/ES FPOA\ C£/VT£ft TO T/P Figure 16, The blank is screwed down to the base plate with 5 machine screws and the back is cut by starting \ inch from the loading edge of the blank and taking a cut across with the micrometer screws set…
