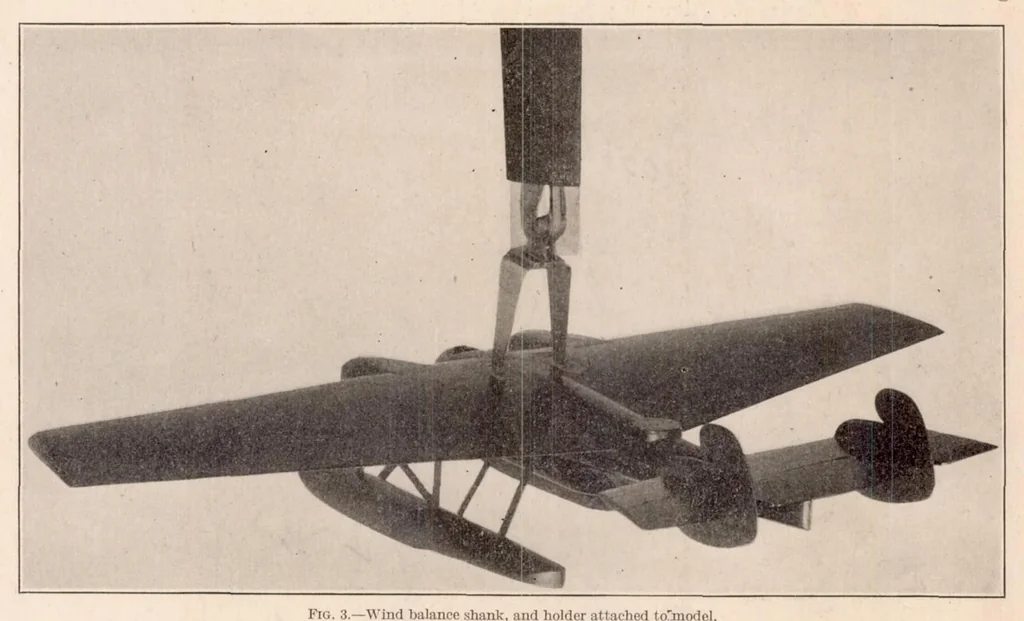

ly it moves 1 inch to weigh 1 pound or pound-inch. In these units, weighings up to 10 by increments of 0.001 are made automatically. In Figure 3 is shown a holder with two stream-line prongs for supporting a model from the lower tip of the shank coming down from the balance. The shank is incased in… … Fi(i. 3.—\\'ind balance shank, and holder attached to^modcl. to the weighing beams the six components X, Y, Z, L, M, N of the air wrench on the model, will next be explained. TRANSLATION MECHANISM. Since the lift, dnig, and side force are to be measured each directly and iiuh^pendently of the…
