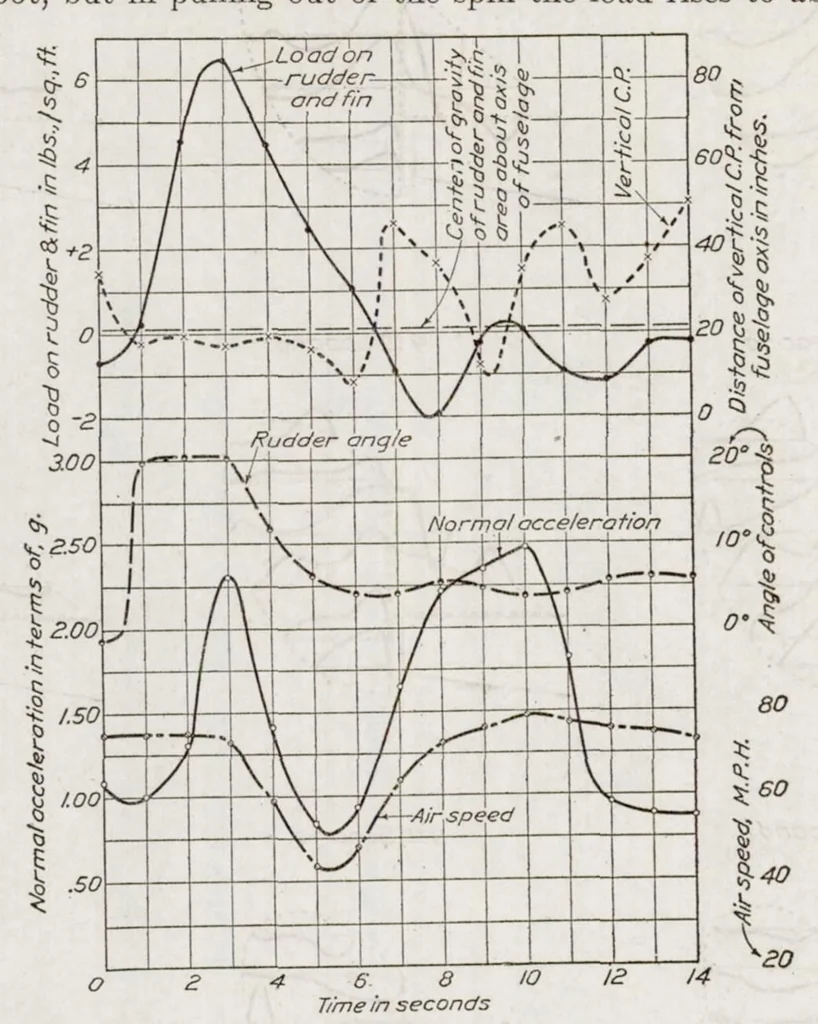

MMITTEE FOR AERONAUTICS. TAIL SPIN. In Figure 8 are shown the curves of pressure over the rudder and fin for a tail spin and as in the previous cases the highest loads occur at the leading edge and immediately behind the hinge. The total load on the rudder is shown in Figure 9, together with the… … Time in seconds Fig. 7.—Roil to right. square foot. The vertical position of the center of pressure lies throughout very close to the vertical position of the center of gravity of the area. CONCLUSIONS. The results obtained from this investigation will enable designers to know much more closely…
