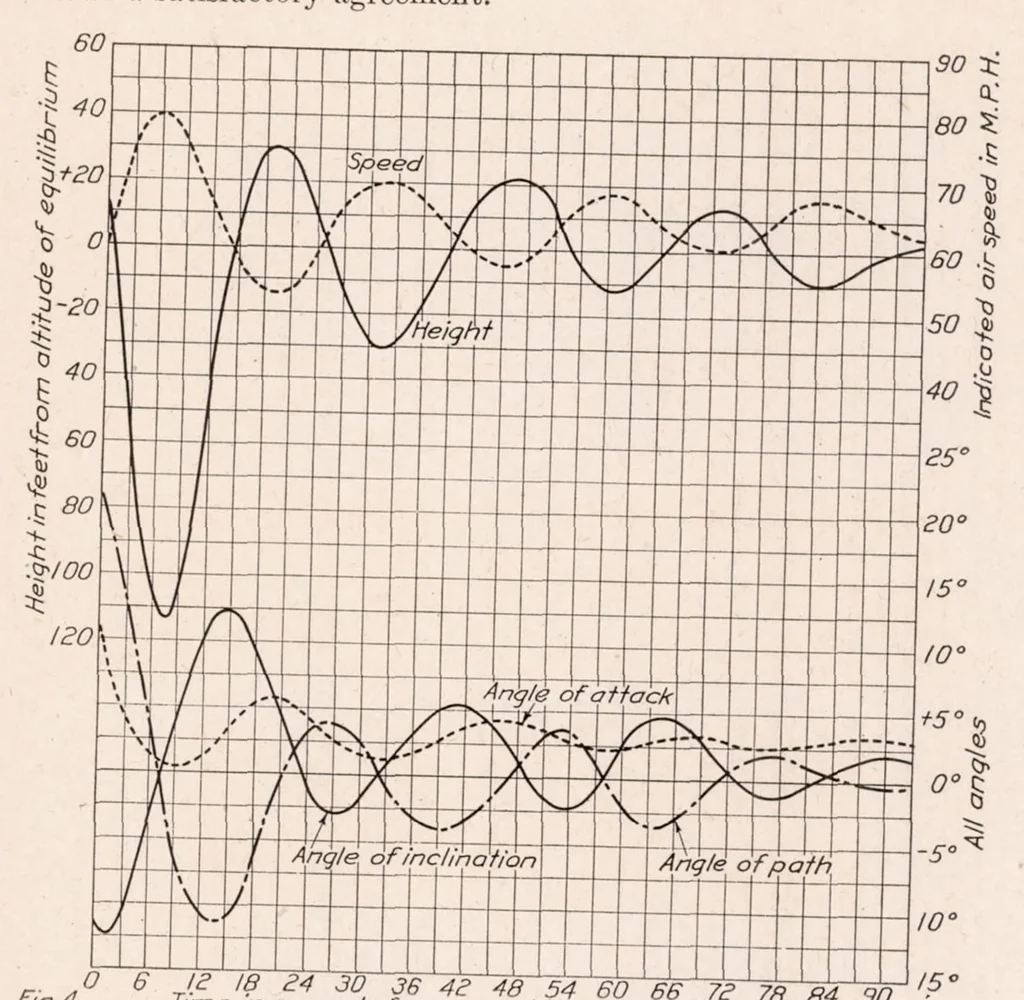

th angle was found by the difference between the angle of attack and the angle of inclination of the longerons, with 1.75 degrees subtracted for the incidence of the wings. This angle can also be found from the slope of the altitude curve plotted against distance rather than time and using true… … 6 la 18 d4 30 36 W> ^48 54 ^60 ' 66 ' 78^ 78 ^84 ^90'^^^' Fig, 4 Time in seconds from on arbiirory ^iarfing point CONCLUSIONS. If tlie synchronized curves arc assumed sinusoidal and plotted on an angle base their phase relation may be summarized as follows: Airspeed ^g^o Inclination of airplane…
