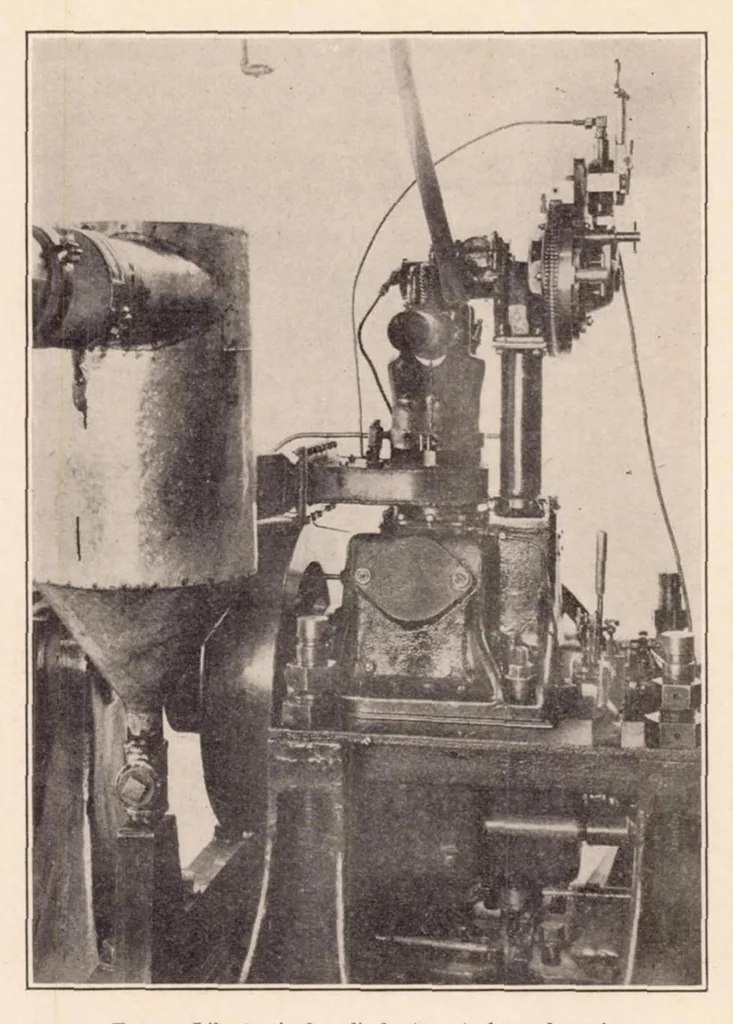

6 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS A sketch of the fuel injection valve is shown in Figure 7. The needle valve has a Lapped fit in the valve body and is lifted by the fuel pressure on the exposed cross section of the stem. … in N. A. C. A. Technical Note No. 213. Fig. ft.—Liberty single cylinder two-stroke cycle engine METHOD OF TESTING The method of obtaining the performance data was to operate the engine with a fixed air supply pressure, selecting by trial, a suitable pump stroke (fuel quantity) and pump timing to…
