Correction of Temperatures of Air-Cooled Engine Cylinders for Variation in Engine and Cooling Conditions (1939)
NASA Technical Reports Server (NTRS) · leaf 12

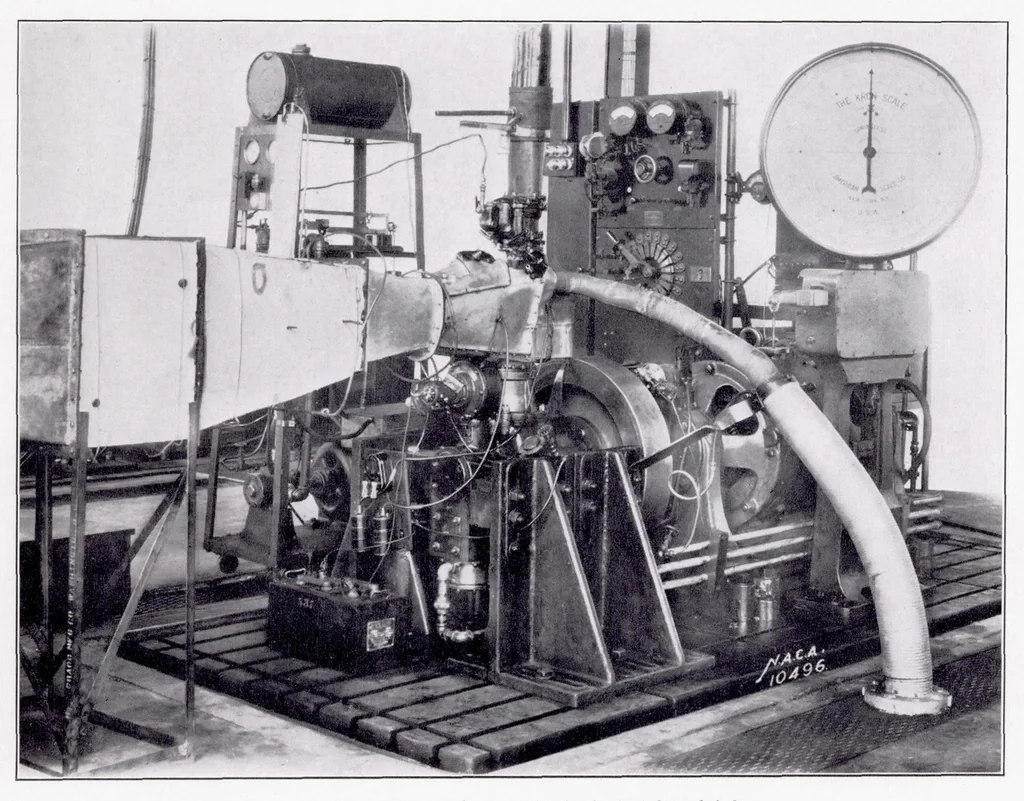

tely 2; for the 1535 and cylinder test stand are given in the following table. 1830 cylinders, the ratio was approximately 3. TEST EQUIPMENT An N. A. C. A. Roots supercharger was used to in- crease the carburetor-intake pressure during tests with manifold pressures greater than atmospheric. A tank… … Figure 6.—Set-up of single-cylinder air-cooled engine showing jacket and air duct. The cooUng system consisted of a blower to supply CYLINDER JACKETS the cooling air, an orifice tank to measure the (juantity In each test, the cylinder was ench)sed in a sheet of air, and an air duct between the…
