Nomenclature for Aeronautics (1927)
NASA Technical Reports Server (NTRS) · leaf 77

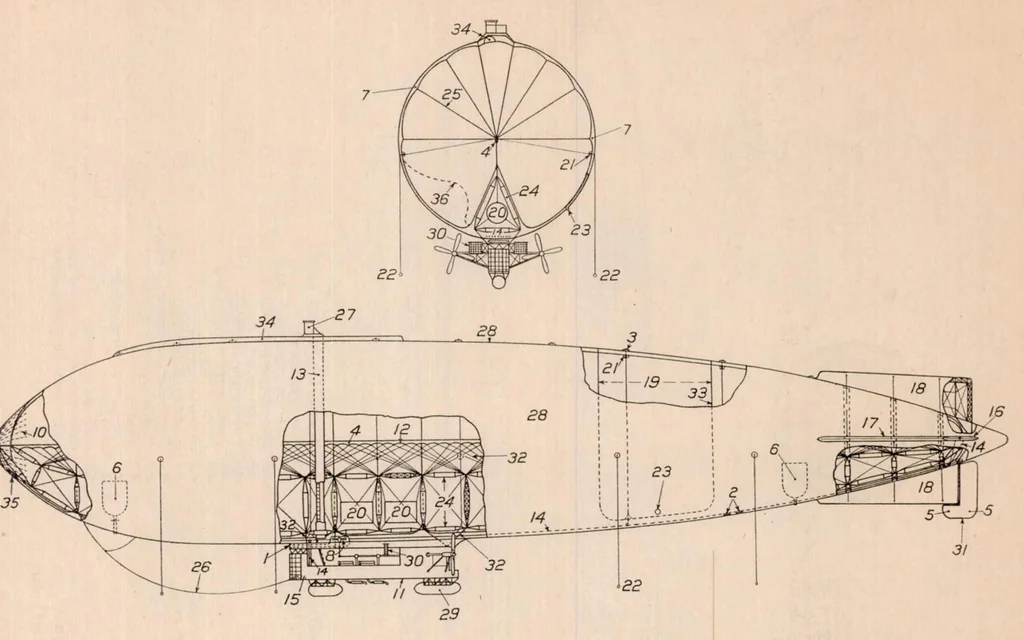

REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS … 25-Longitudinal diaphragm 13- Climbing shpft 1- Air duct 25- Mooring line 14- Control cables 2- Air valve 27- Obser vat ion platform 15 - Drag rope (sto wage) 3- Aufomafic and manual 26- Outer cover 16-Elevator (balanced) valve (gas) 29- Pneumatic bumper n-Fin( horizon tal) 4- Axio/ suspension band…NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
