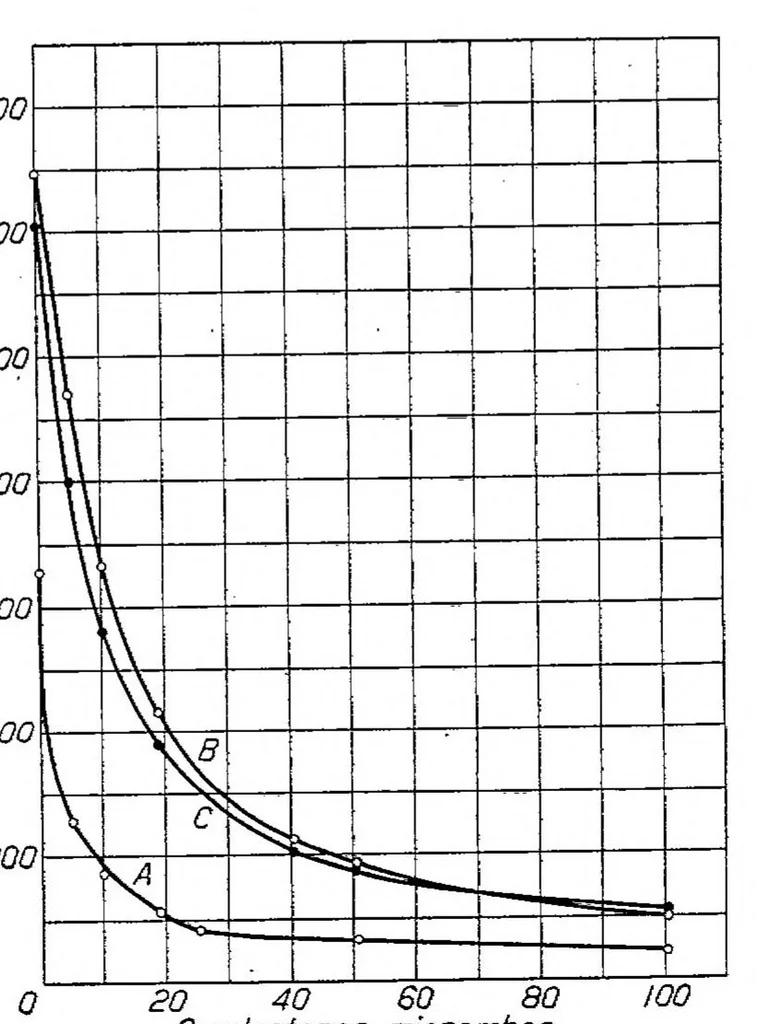

conductance for 6-volt coil J; A at 800 sparks per minute, B at 5,000 sparks per minute, C coil I; A at 800 sparks per minute, B at 5,000 sparks per minute, O same as A but with an additional condenser of 330 jujif capacitance same as A but with a condenser of 330 nid capacitance shunting sec-… … too 20 40 60 80 Conductance, micromhos Fig. 19.—Secondary crest voltage vs. shunting conductance for magneto K (shuttle-core type) at full advance; A at 50 R. P. M., B at 1,000 E. P. M., C same as B but with an additional condenser of 210 «uf capacitance shunting the secondary
