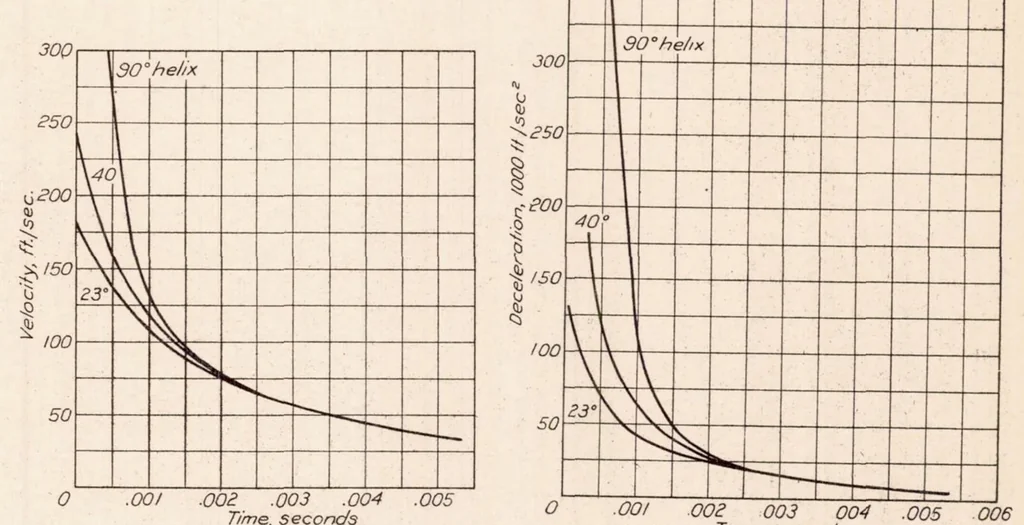

re shown in Figures 10 and 11. Although the initial velocity of the sprays (fig. 10) was very much greater when the straight or 90° grooves were used, the velocity after 0.0025 second was the same for all three-groove angles. Thus the deceleration was more rapid for the spray produced with the… … .00/ 002 003 004 .005 006 Time, seconds Time, seconds Fig. 10.—Effect of groove helix angle on spray tip velocity. Fig. 11.—Effect of groove helix angle on spray tip deceleration. Orifice diameter 0.022 inch. Injection pressure, 8,000 pounds Orifice diameter 0.022 inch. Injection pressure, 8,000…
