The N.A.C.A. Photographic Apparatus for Studying Fuel Sprays from Oil Engine Injection Valves and Test Results from Several Researches (1928)
NASA Technical Reports Server (NTRS) · leaf 13

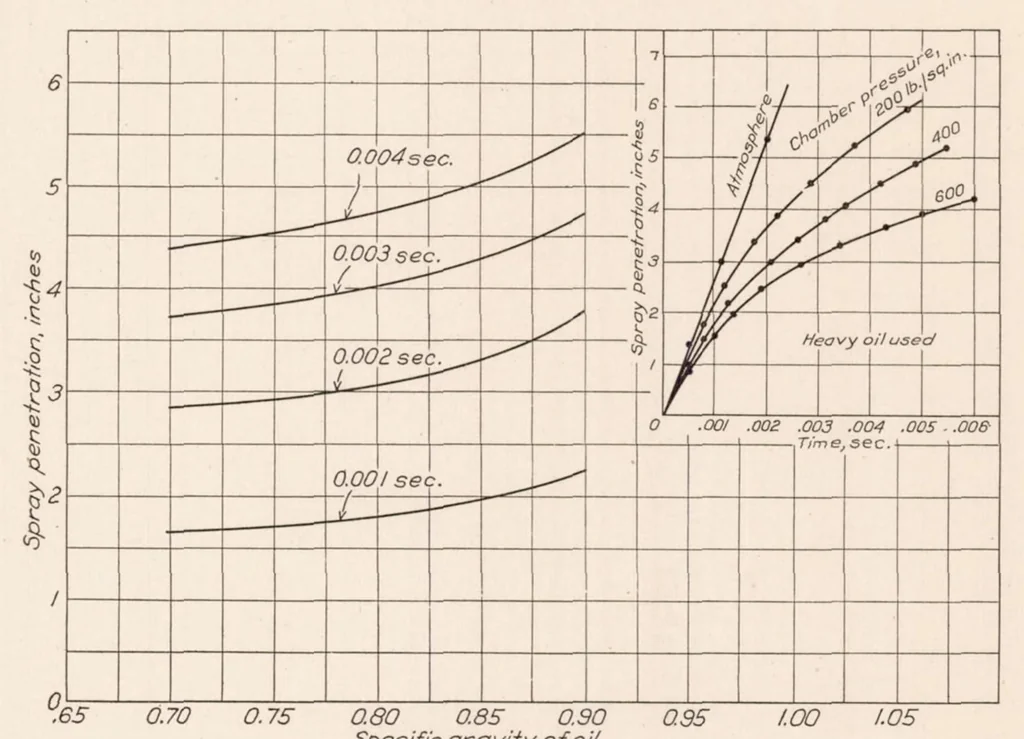

ncrease with the specific gravity and the upward trend of the curves indicates that oils of greater specific gravity than those tested would have still greater effects. From the curves, a heavy oil of 0.90 specific gravity would have 10 per cent greater penetration after 0.003 second than an… … Specific gravity of or/ Fig. 10— Effect of specific gravity of oil on spray penetration Injection valve No. 7; 23° spiral. Cylinder orifice, 0.022 inch diameter. Injection pressure, 8,000 pounds per square inch. Fuel oil used, gasoline, kerosene, Diesel, and heavy fuel oil of specific gravity…
