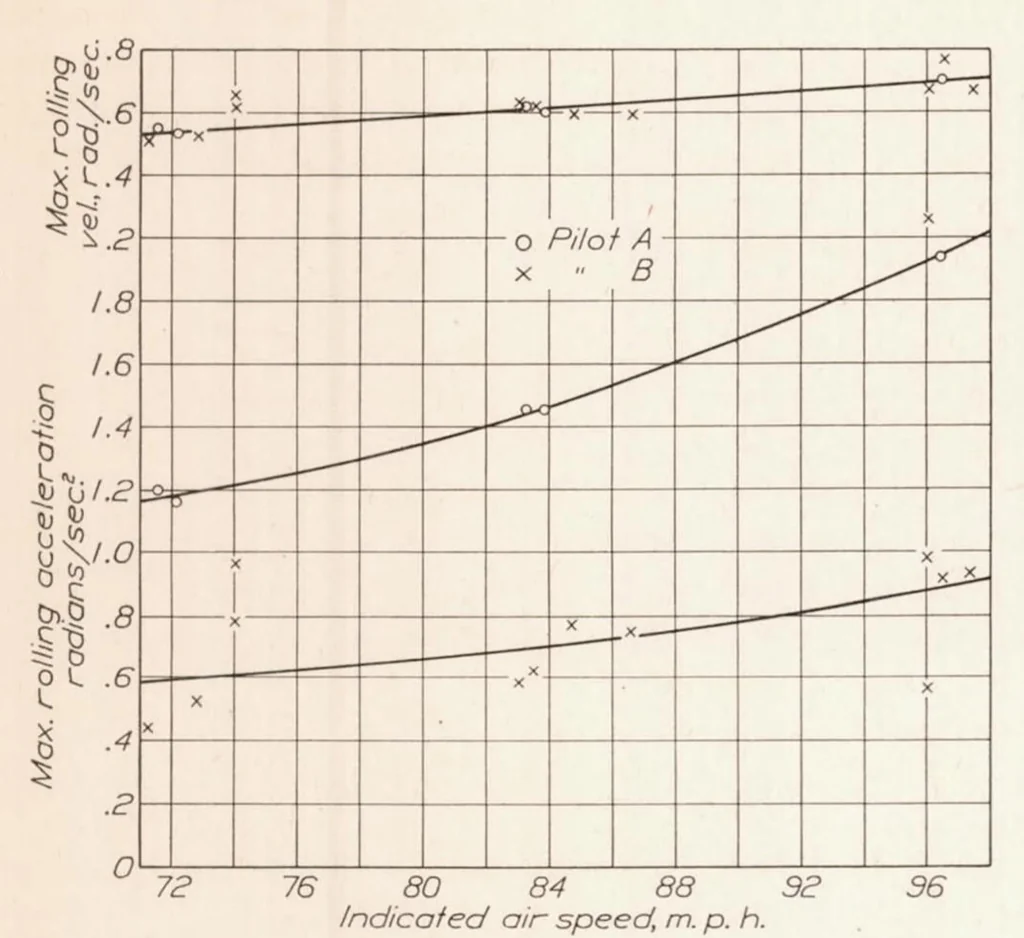

9 MANEUVERABILITY INVESTIGATION OF AN "03U-1" OBSERVATION AIRPLANE to concentrate his energy on the operation of the by Pilot A are considered to be exceptional. The posi- ailerons. tive slope of all the curves in this figure indicates that The curves in figure 15 show maximum rolling veloc- the… … Indicated air speed, m. p. h. Figure 12.—Maximum values of rolling velocity and acceleration for abrupt aileron I movement, left aileron down 13.0°, full movement (OSU-l airplane). 0^1. DO ft6 ^£ x 0 120 70 80 90 100 110 Indicated air speed, m. p. h. Figure 16.—Maximum values of transverse…
