Full Scale Tests of Wood Propellers on a VE-7 Airplane in the Propeller Research Tunnel (1929)
NASA Technical Reports Server (NTRS) · leaf 6

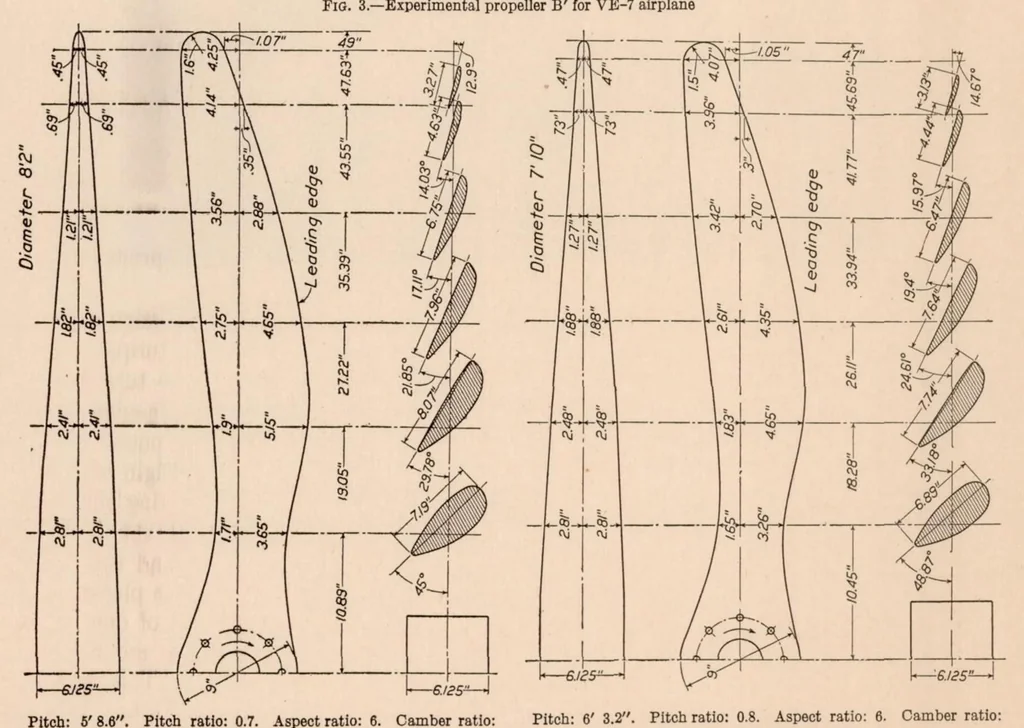

FULL SCALE TESTS OF WOOD PROPELLERS 5 Pitch: 6' 1.2". Pitch ratio: 0.6. Aspect ratio: 6. Camber ratio: Minimum -}-20 per cent. Rotation: Right hand. Fig. 3.—Experimental propeller B' for VE-7 airplane … Pitch: 5' 8.6". Pitch ratio: 0.7. Aspect ratio: 6. Camber ratio: Pitch: 6' 3.2". Pitch ratio: 0.8. Aspect ratio: 6. Camber ratio: Minimum +20 per cent. Rotation: Right hand. Minimum +20 per cent. Rotation: Right hand. Fig. 4.—Experimental propeller I for VE-7 airplane Fig. 6.—Experimental propeller…NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
