Full Scale Tests on a Thin Metal Propeller at Various Tip Speeds (1929)
NASA Technical Reports Server (NTRS) · leaf 5

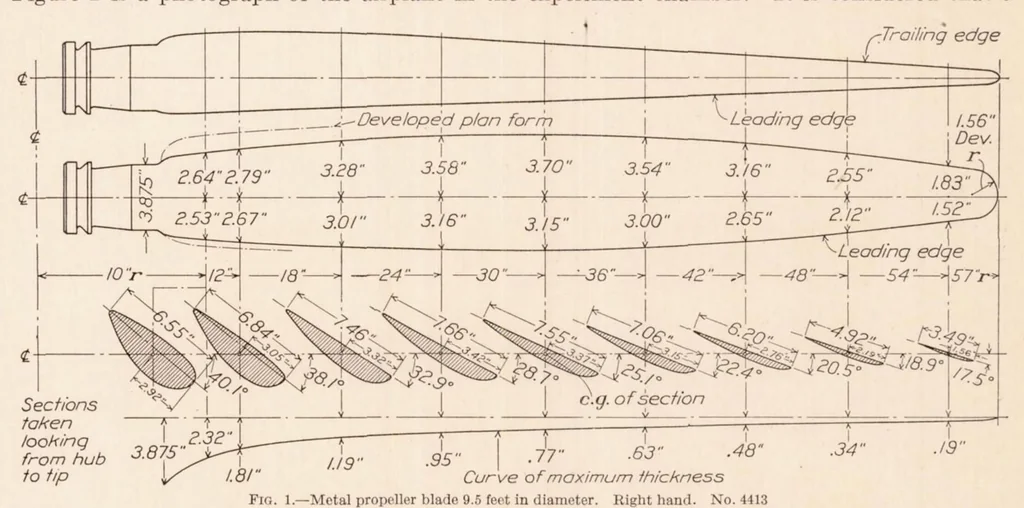

of velocities up to 110 M. P. H. A complete description of the tunnel, balances, and other measuring apparatus is given in reference 6. A Vought VE-7 airplane with a Wright E-2, 180 HP. engine, which had been mounted in the tunnel for another investigation (reference 7), was also used for these… … Fir.. 1.—Metal propeller blade 9.5 feet in diameter. Right hand. No. 4413 ORDINATES OF SECTIONS AT VARIOUS RADII FOR EXPERIMENTAL METAL PROPELLER BLADE 9.5 ft. diameter, right-hand (fig. 1) The chord is divided into 10 equal parts, or stations, with the one at the leading edge subdivided into…
