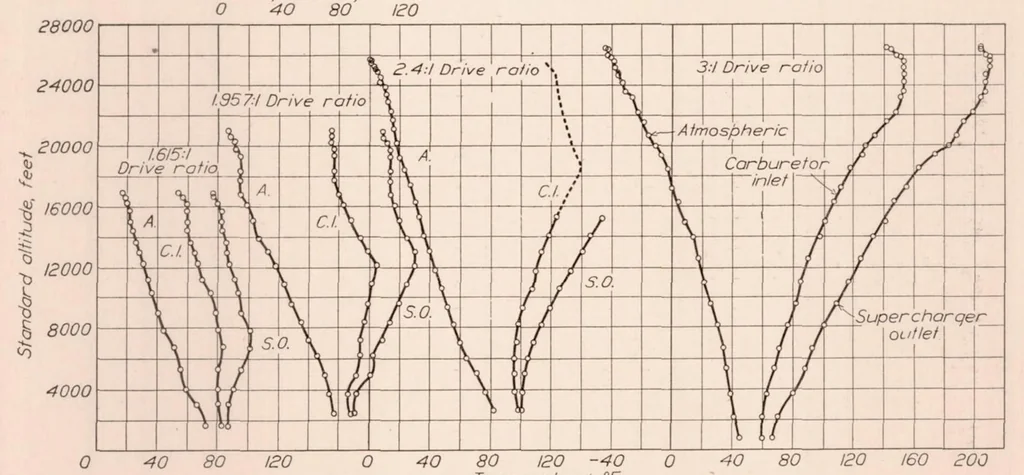

ds of DII4-M2 airplane in climb and in level flight with no supercharging and with four supercharging capacities climbs given in Tables IV, VII, X, and XIII. The atmospheric and carburetor air pressures for the same conditions are shown in Figure 7. The abrupt decrease in pressure shown by the… … 40 80 120 160 200 40 80 ISO -40 40 80 120 Temperoture, °F Figure 6.—Atmospheric, supercharger outlet and carburetor inlet air temperatures during climb for the four supercharging conditions. Data given in Tables IV, VII, X, and XIII Figure 8 shows the atmospheric and carburetor air temperatures and…
