Measurements of Fuel Distribution Within Sprays for Fuel-Injection Engines (1937)
NASA Technical Reports Server (NTRS) · leaf 10

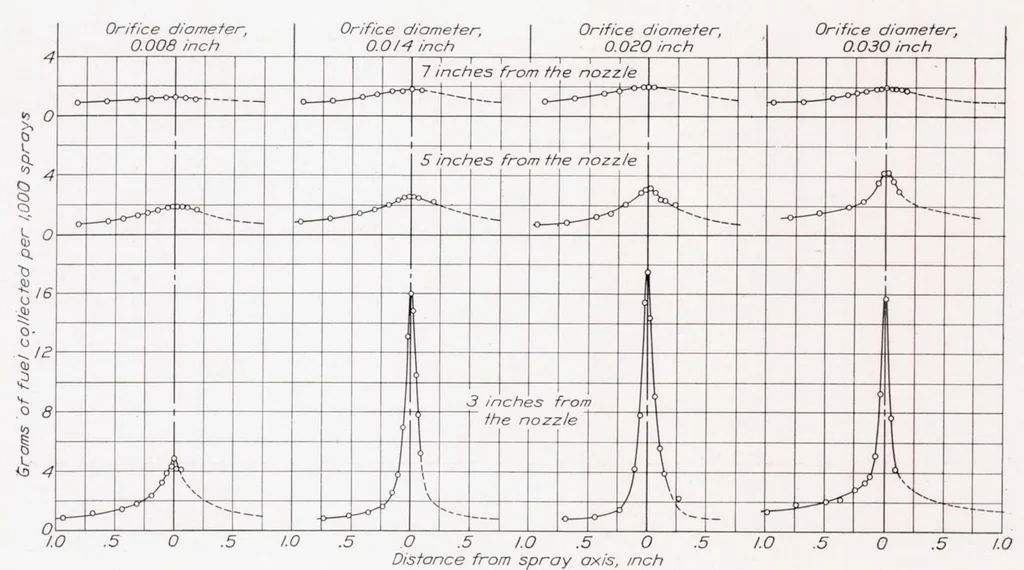

7 FUEL DISTRIBUTION WITHIN SPRAYS FOR FUEL-INJECTION ENGINES … Distance from spray axis, inch Figure 6.—Sampling-tube tests with plain nozzles having different orifice diameters. Orifice length-diameter ratio, 2; air density, 14 atmospheres. Air density, 6 atmospheres Air density, 14 atmospheres 36 6 32 28 24 20 16 12 0 10 .5 0 .5 /.O .5 O .5 1.0 Oisfanc…
