The Design and Development of an Automatic Injection Valve with an Annular Orifice of Varying Area (1931)
NASA Technical Reports Server (NTRS) · leaf 7

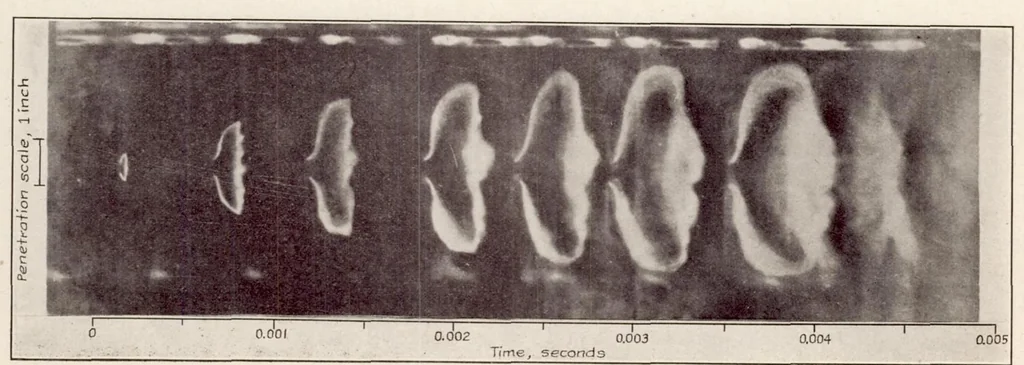

6 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS Time, seconds Figure 4A.—Injection pressure,lO,000 lb./sq. in. gage. Chamber pressure, 210 lb./sq. in. gage I i | i , 1 , , 1 0 0.001 0,002 0.003 0.004 Time, seconds Figure 4B— Injection pressure, 8,000 lb./sq. in. gage. Chamber pressure, 210… … Time, seconds Figure 4C—Injection pressure, 10,000 lb./sq. in. gage. Chamber pressure, 210lb./sq. in. gage Spray photographs from annular orifice automatic injection valveNASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
