The Effect on Airplane Performance of the Factors That Must Be Considered in Applying Low-Drag Cowling to Radial Engines (1933)
NASA Technical Reports Server (NTRS) · leaf 7

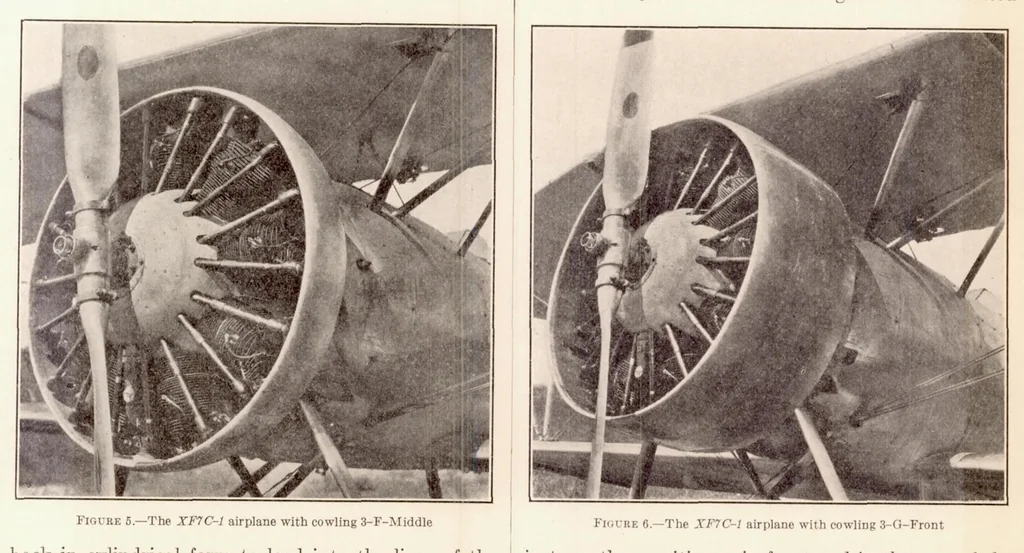

similar to Cowling F.—Cowling F (figs. 3 and 5) is a ring 9 the ring of the No. 10 cowling described in references inches wide, having a Clark Y airfoil profile with its 1 and 3. A cross section of cowling C resembles a highly chord parallel to the thrust line. In its middle position cambered… … back in cylindrical form to lead into the lines of the in two other positions—in front and in the rear of the fuselage. Only a small slot is left between the skirt middle position. Cowling F weighs 21 pounds. of the cowling and (he fuselage for the exit of the Cowling G. Cowling G (figs. 3 and 6)…
