Pressure Distribution Tests on a Series of Clark Y Biplane Cellules with Special Reference to Stability (1933)
NASA Technical Reports Server (NTRS) · leaf 6

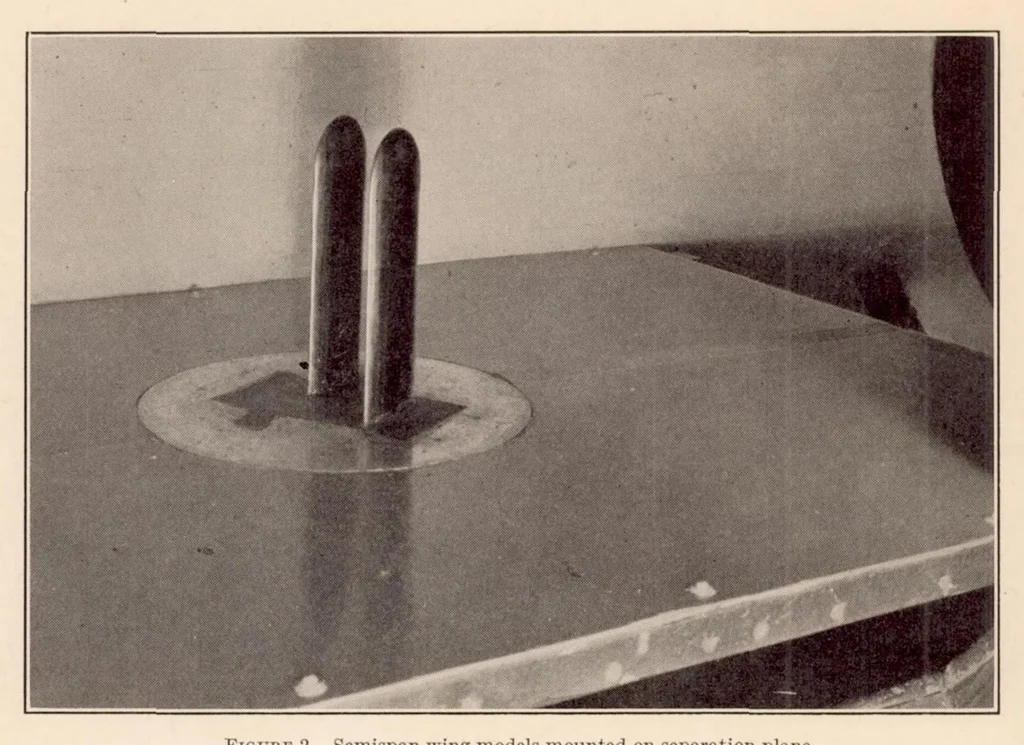

and within each same plane. Figure 3 shows the plan form of the wings with test sections and orifice locations indicated. group they were so spaced that the heights of the alcohol Each orifice was the end of a 0.015-inch inside diameter columns formed ordinates of the section-load diagrams. brass… … Figure 2—Semispan wing models mounted on separation plane Section A Section B Section C Section D Section. E Figure 3.—Plan view of wing models showing profiles and orifice locations tubes. As each record was taken it was wound on a several inches beyond the butt of the wing to facilitate reel in a…
