Pressure-Distribution Measurements on the Hull and Fins of a 1/40-Scale Model of the U. S. Airship "Akron." (1934)

NASA Technical Reports Server (NTRS) · leaf 5

An illustration from Pressure-Distribution Measurements on the Hull and Fins of a 1/40-Scale Model of the U. S. Airship "Akron.", 1934, leaf 5

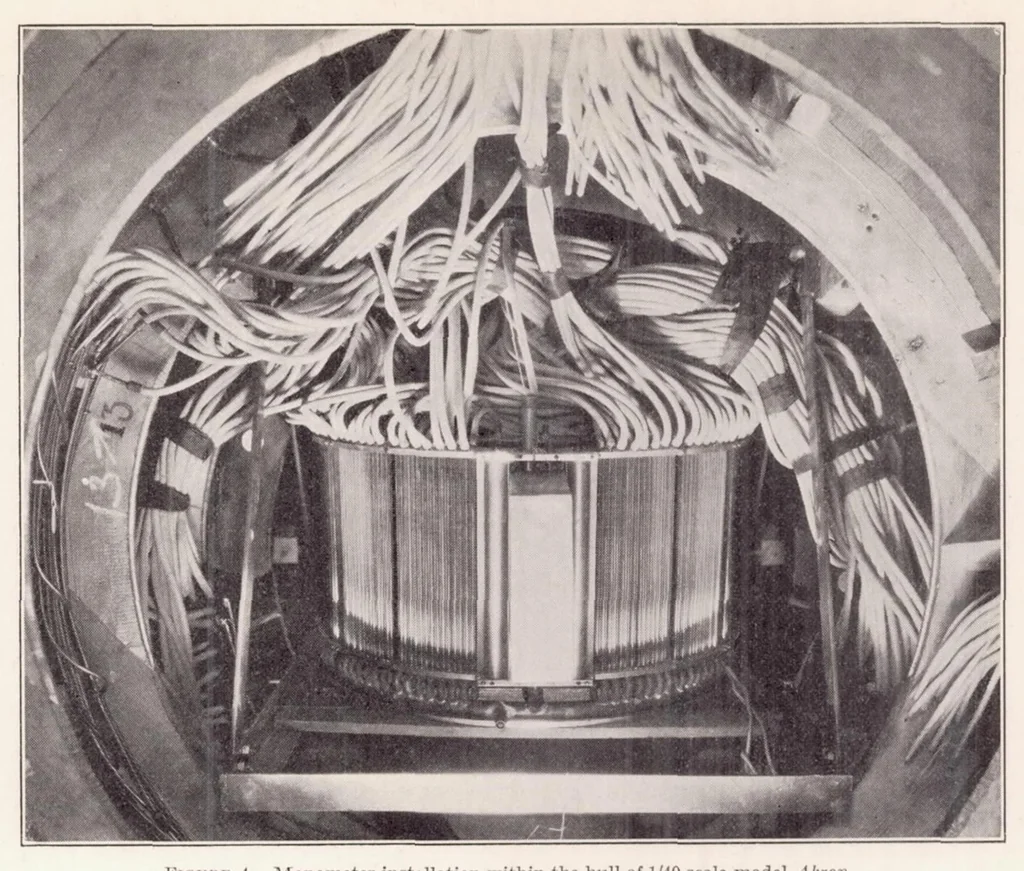

5 PRESSURE-DISTRIBUTION MEASUREMENTS ON HULL AND FINS OF MODEL OF "AKRON' … Manometer installation within the hull of 1/40-scale model Akron Figure 4. back into the box, and was wound The manometers were mounted inside the model on the spoolC, which was driven by an electric motor. The metering spool was geared to a mechanism that on cradles, which were free to swing about…
