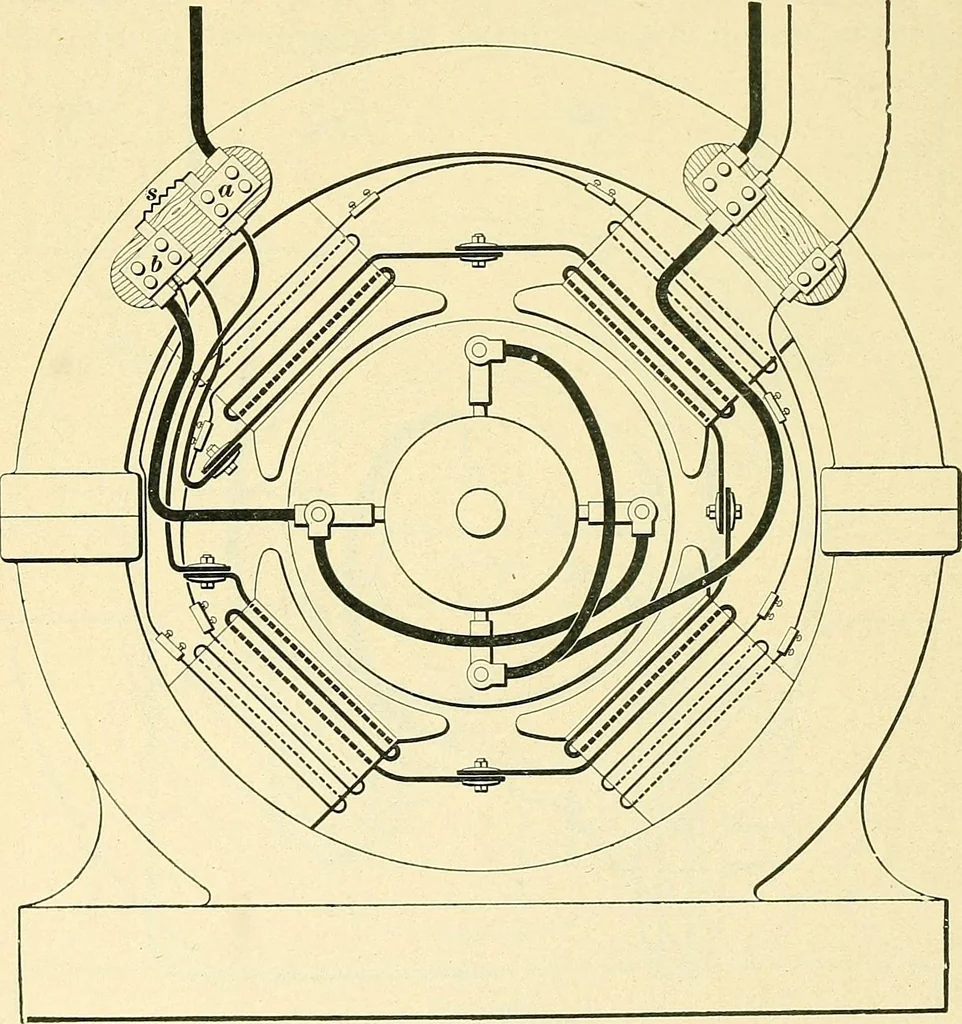

cribed in the preceding pages. Theright-hand board has two blocks: one, that at «, beingsimilar to Fig. 1399, and the other, lettered b, like Fig1402. On the other terminal board are similar blocks.A permanent connection is made at c to complete theshunt circuit; this is done in order that the… … Fig. 1405. DYNAMO-ELECTRIC MACHINE DESIGN. 2515 COMPOUND-WOUND DYNAMO. 3773. Fig. 1405 shows the connection for a compound-wound dynamo. On the left-hand board the series shunt sis shown by a wavy line. This may be connected by solder-ing to special tips. The terminal a is detailed in Fig. 1399.The…
