Penetration and Duration of Fuel Sprays from a Pump Injection System (1934)
NASA Technical Reports Server (NTRS) · leaf 5

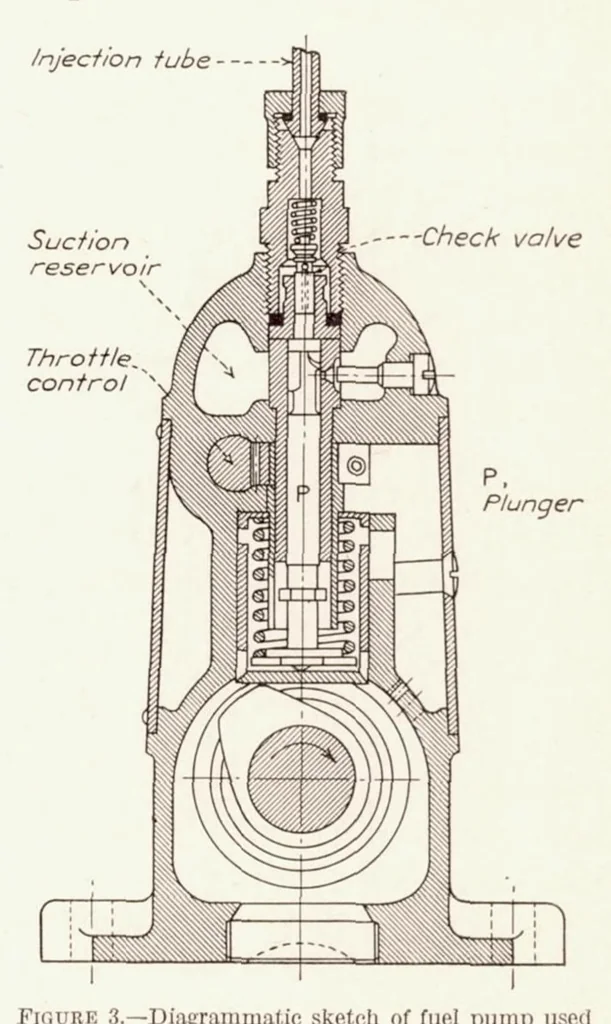

e opened for a few revolutions to expel all air from the injection tube. Air was then blown through the spray chamber to clear the glass walls and to remove suspended oil particles. The air pressure, unless otherwise stated, was raised to 200 pounds per square inch, a density of 1.1 pounds per… … Figure 3.—Diagrammatic sketch of fuel pomp used electric motor and was connected to the camshaft in tests through a jaw clutch. The camshaft remained sta- tionary until engaged by this clutch. It then made speed was reached, the pump throttle was again opened, one revolution with the pump shaft.…
