Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 133

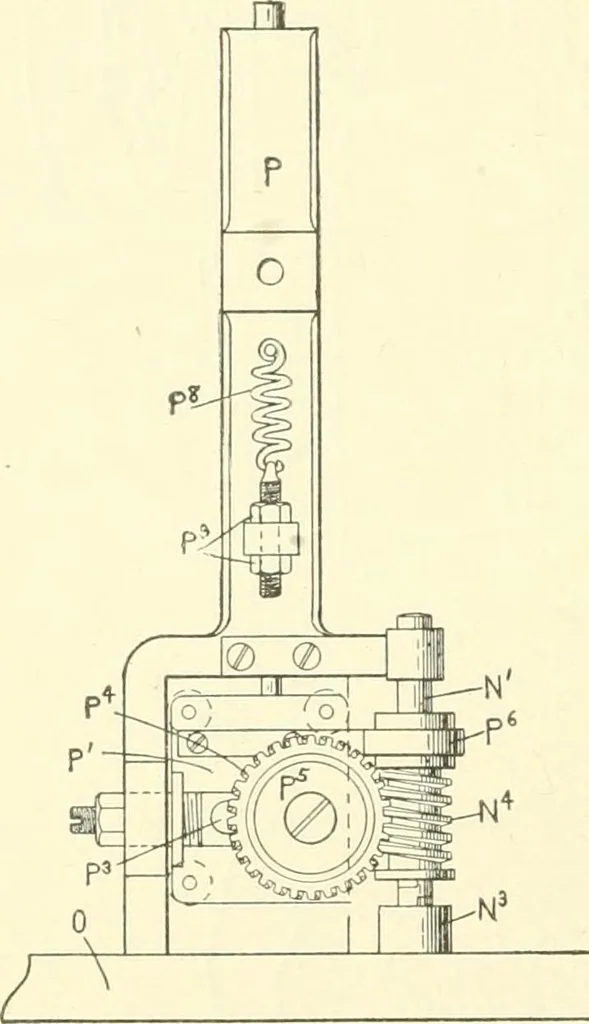

this. They can be attached to the rods P^*and made to increase the tension on the fabric, or turned aroundand attached to the take-up blocks directly, and adjusted to diminishthe tension. Bobbin Rack. Fig. 50 represents the bobbin rack. H is acasting with a hub, in the bore of which is held, by… … 180 KNITTING 107 with the hub, and outside these another circle of the same number aresimilarly arranged. The bobbins are placed on these pins. On theupper end of the rod H^ is fastened a hub H in wliich are drilled asmany radial holes as there are bobbin pins, and extending from each ofthese holes…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
