Penetration and Duration of Fuel Sprays from a Pump Injection System (1934)
NASA Technical Reports Server (NTRS) · leaf 9

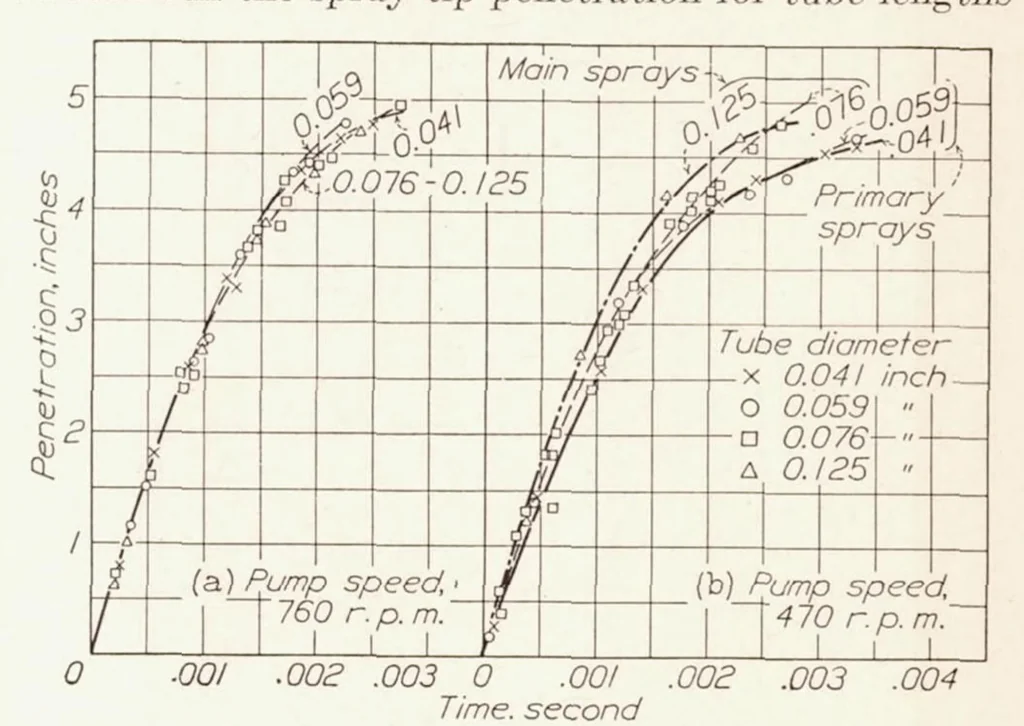

s probably due to their formation. which increases the penetration. In order to illustrate the influence of these primary Effect of injection-tube length.—Figure 13 shows sprays in this instance, a comparison of Figure 10 with the effect of the injection-tube length on the spray-tip Figure 12 (h)… … Time, second 0 .001 .002 .003 0 .001 .OOP .003 .004 Time, second Figure 12.—Effect of injection-tube inside diameter on spray-tip penetra- Figure 10—Effect of injection-valve closing pressure on spray-tip penetration tion. Injection-valve closing pressure, 2,000 lb./sq. in. Tube length, 34 in. of…
