A Description and Test Results of a Spark-Ignition and a Compression-Ignition 2-Stroke-Cycle Engine (1935)
NASA Technical Reports Server (NTRS) · leaf 7

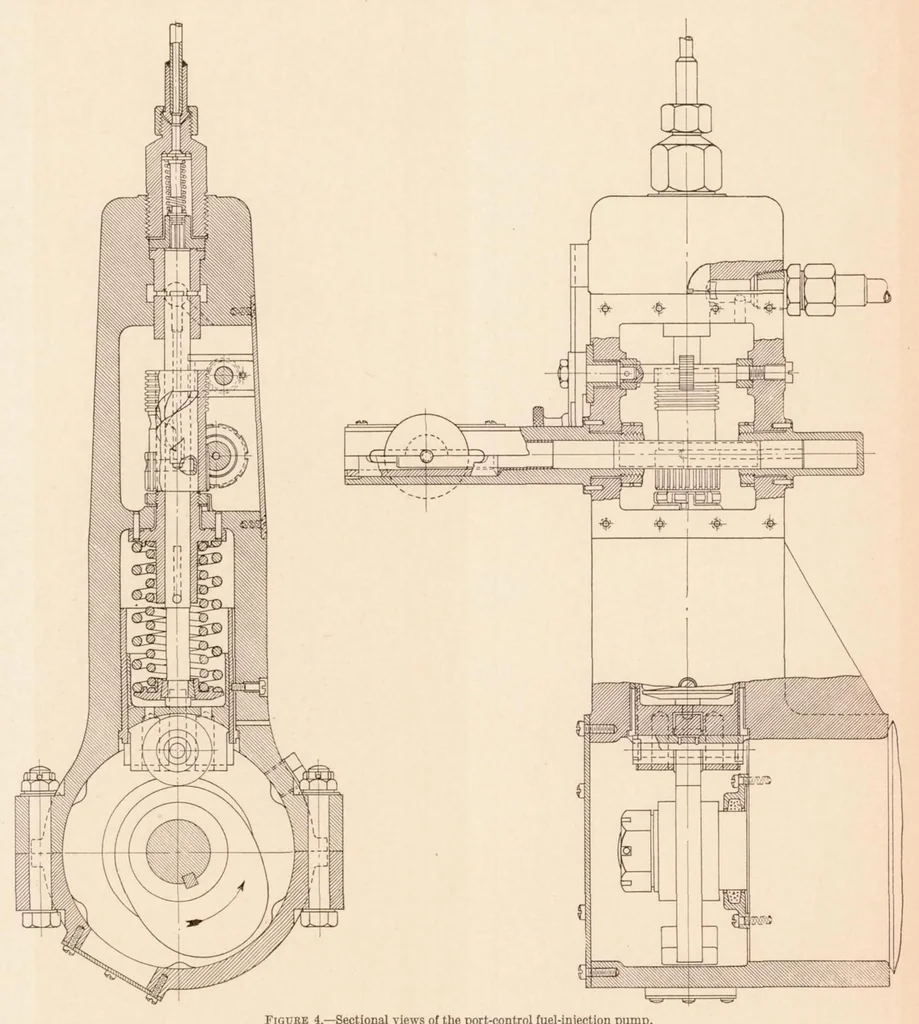

sure of 1,500 to 2,000 pounds per square a pressed-in duralumin plug in each end. Forced inch and the cam-operated port-controlled plunger lubrication was supplied to the piston pin by means of pump shown in figure 4. The pump cam was driven a tube added to the Liberty connecting rod. Pressure from… … Figure 4.—Sectional views of the port-control fuel-injection pump. cylinder had sufficient penetration to impinge upon num tubes pressed into the piston carried oil under the opposite cylinder wall and impair the lubricating pressure from annular grooves in the pin bosses to qualities of a…
