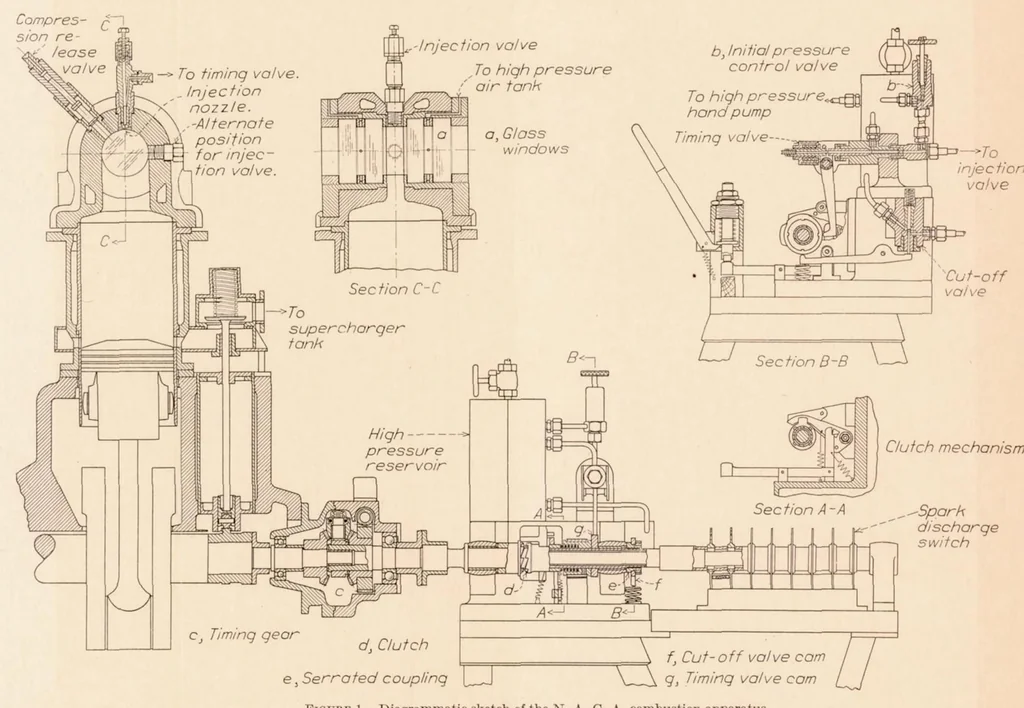

was one-sixteenth inch from the piston crown witb the speed camera are described in detail in references 1, 2, piston at top center. The spark plugs were screwed and 3. The compression ratio of the engine during the into the opening in the side of the cylinder head that present tests was L2.7. The… … Figure 1.—Diagrammatic sketch of the X. A. C. A. combustion apparatus Figure 1 shows the engine with two glass windows optical indicator, which lias been described in reference on each side of the combustion chamber. During 4, is given in figure 3. the present tests the windows were removed from…
