The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 582

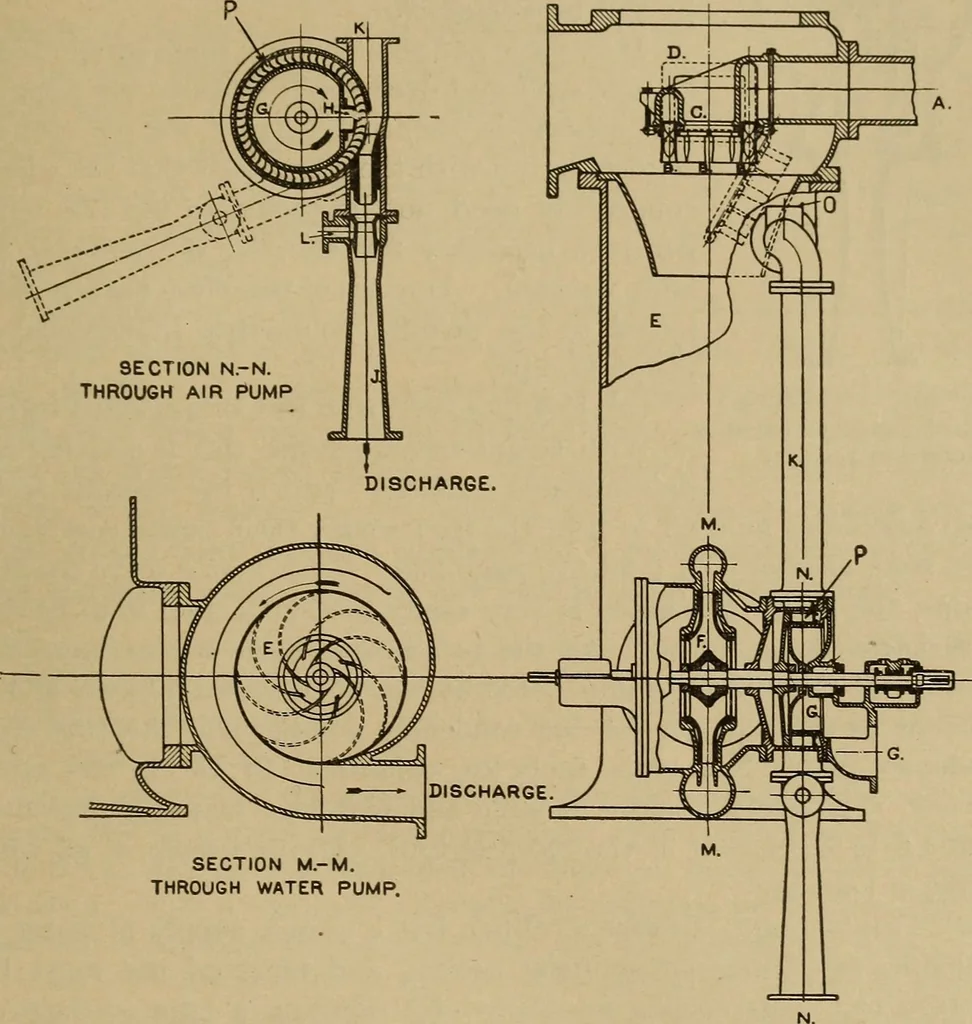

, in a stream filling the large funnel ornozzle, sweeps into space E, where the air separates and is drawn offthrough pipe K. A plain centrifugal pump takes water from the con- § 53 (o)] CONDENSERS AND AIR PUMPS. 567 denser; and on the same shaft with it is the impeller of turbine pump P,which… … SECTION M.-M.THROUGH WATER PUMP, Fig. 400. — The Leblanc Condenser and Pumps. From Bulletin of Westinghouse Machine Company. air from the condenser is carried out by and with the water. Partlyby suction of the vacuum, partly by the impeller, the current is givensufficient velocity to expel it…
Steam-engines · Steam-turbines
