A Comparison of Fuel Sprays from Several Types of Injection Nozzles (1936)
NASA Technical Reports Server (NTRS) · leaf 25

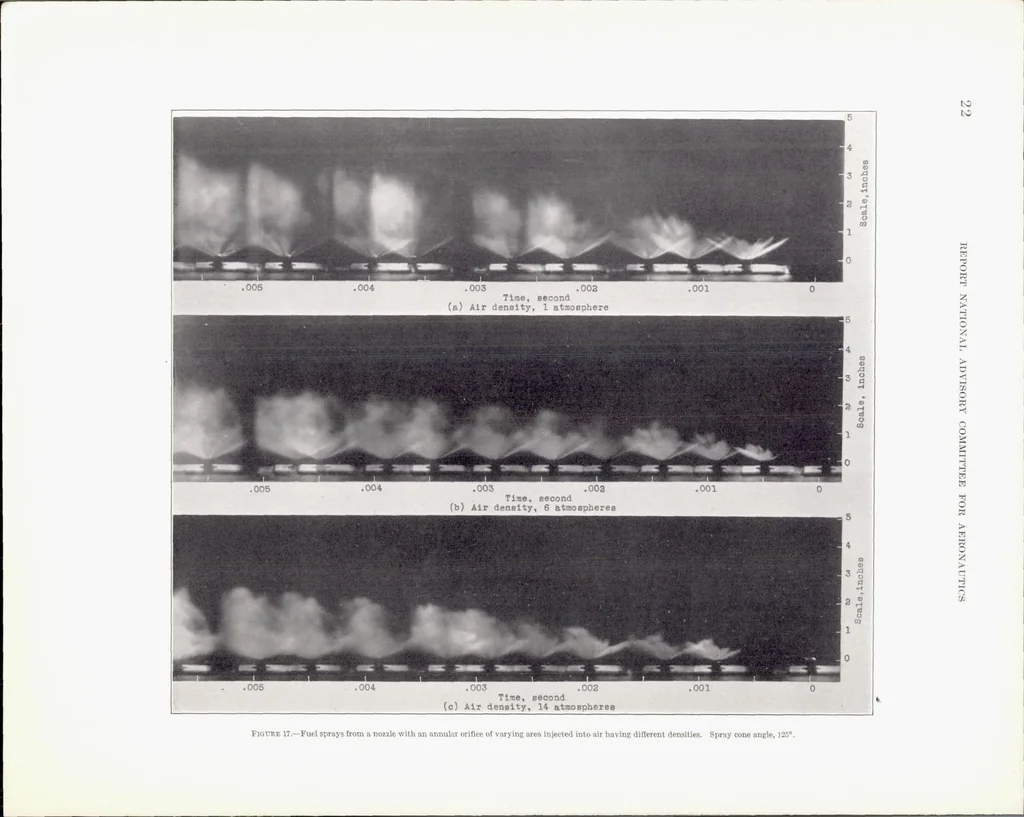

Figure 17—Fuel sprays from a nozzle with an annular orifice of varying area injected into air having different densities. Spray cone angle, 125°.NASA Technical Reports Server (NTRS)
