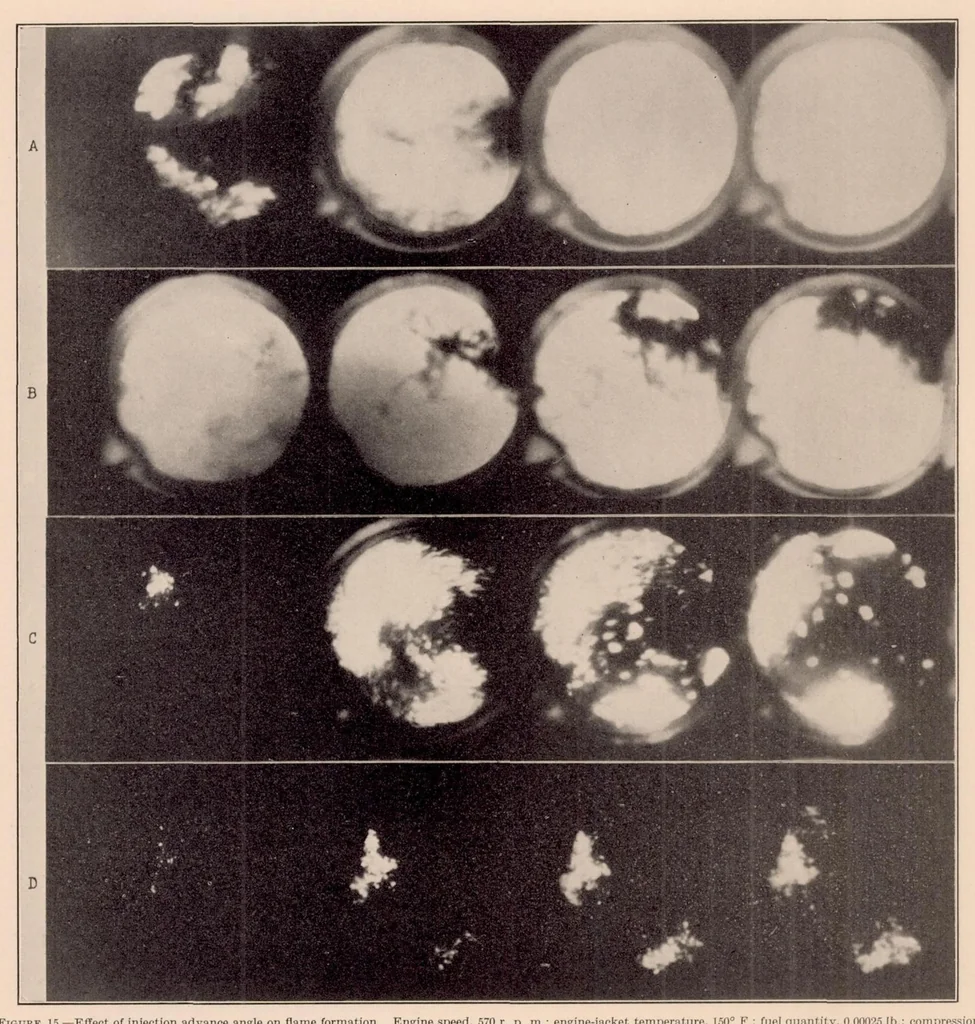

of the chamber except for an out the chamber but of no orderly movement of the area between the lower portions of the two main sprays. gases as a whole. As before, with injection at top This area is filled with flame in the next frame. After center there is a definite downward motion during the the… … Figure 15.—Effect of injection advance angle on flame formation. Engine speed, 570 r. p. m.; engine-jacket temperature, 150° F.; fuel quantity, 0.00025 lb.; compression ratio, 13.9. A, i. a. a. 30°; B. i. a. a. 40°; C, i. a. a. 60°; D, i. a. a. 80°. (See also fig. 13.) followed by the flame's again…
