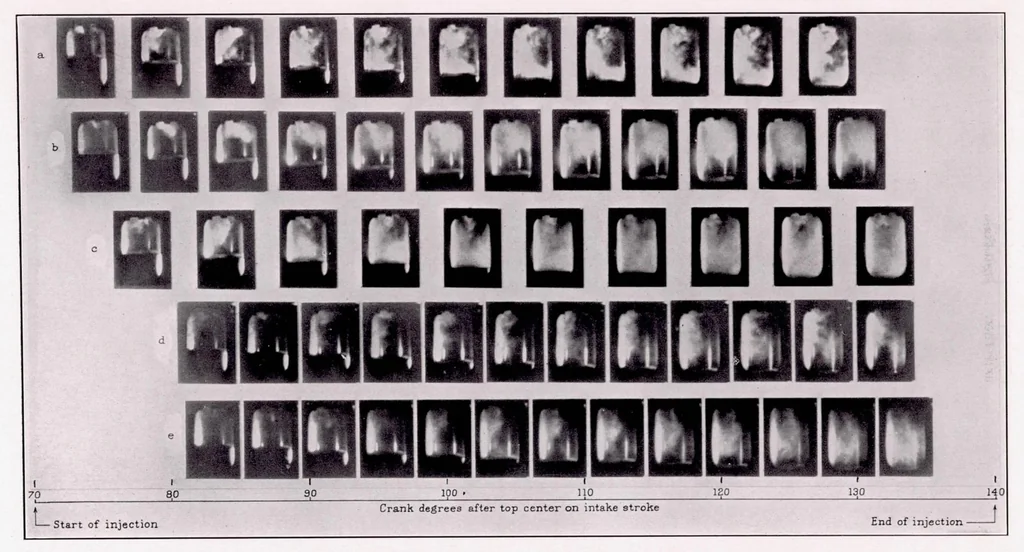

FigcRE 16.—High-speed motion pictures of sprays from the annular-orifice nozzle using different intake conditions and fuels, (a) Plain valves, gasoline spray; (b) shrouded valves in arrangement A, gasoline spray; (c) shrouded valves in arrangement F, gasoline spray; (d) altered intake passage,…
