Investigation of a Rateau Supercharger for a 700-horsepower Airplane Engine (1934)
NASA Technical Reports Server (NTRS) · leaf 17

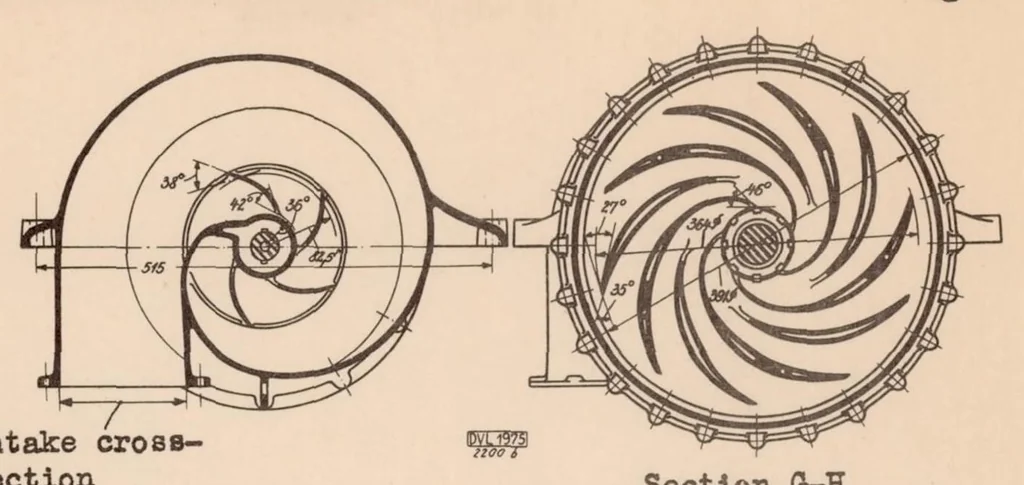

N*A.C«A, Technical Memorandum No.738 Pigs. 2f3f8 … section Section Q-H Guide channels Section E-F Suction side of spiral housing Figure 2.-Inlet spiral and guide channels. Spiral housing Compressed-air housing (suction side) Figure 3.-Cross sections of inlet and outlet spirals. (For dimensions see tahle on following page.) Figure 8.-Work diagram of…NASA Technical Reports Server (NTRS)
