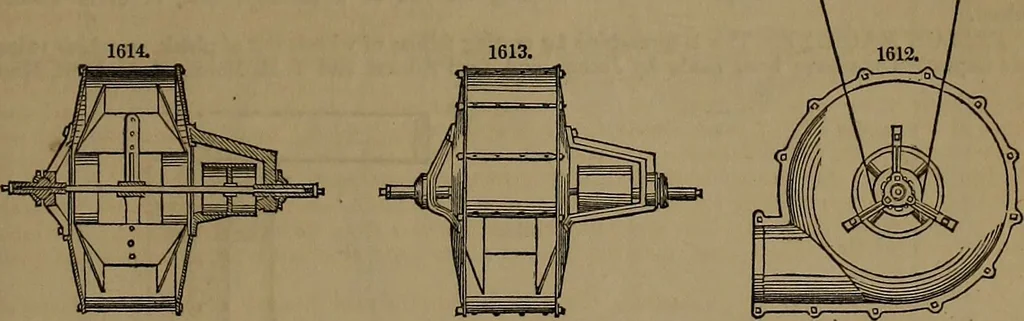

thout any falling off in density. The above embody the results and deductions from Mr. Buckles experiments on the common form ofeccentrically placed fan; but, besides this form, there is a great variety of others, on which, it is true,no scientific experiments have been made of their working, but… … Fig. 1612 is a side view. Fig. 1613 an end view, looking into the outlet pipe. Fig. 1614 a section.It will be seen that the vanes of the fan are in the form of a trapezium, and that the air-chamber notonly extends all round the periphery of the fan, but also at the sides. This fan is in use at the…
