Guide Vanes for Deflecting Fluid Currents with Small Loss of Energy (1933)
NASA Technical Reports Server (NTRS) · leaf 35

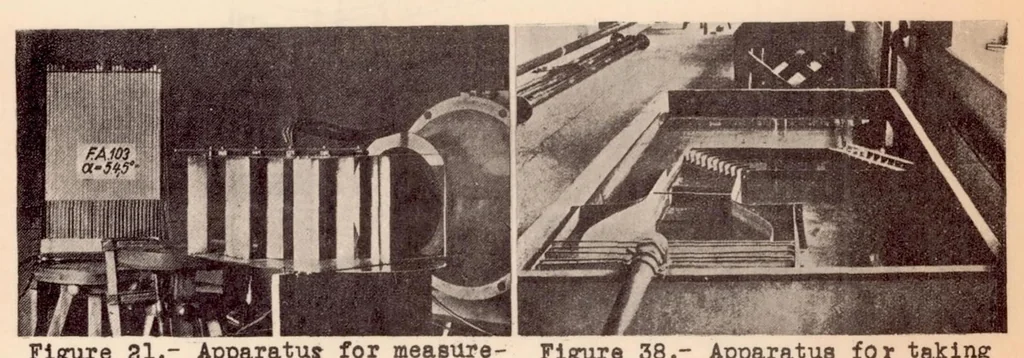

N.A.C.A. Technical Memorandum No. 723 Figs- 18,31,38,39,40 Figure 18.- Apparatus for measure- ing pressure distribu- tion on basic profile (nearer disk removed). … Figure 31.- Apparatus for measure- Figure 38.- Apparatus for taking ing pressure distribu- flow pictures, tion on gird profile. Figure 39.- Flow through gird. Figure 40.- Flow through gird? Profiles of first one vane removed, approximation.
