The critical shear load of rectangular plates (1933)
NASA Technical Reports Server (NTRS) · leaf 16

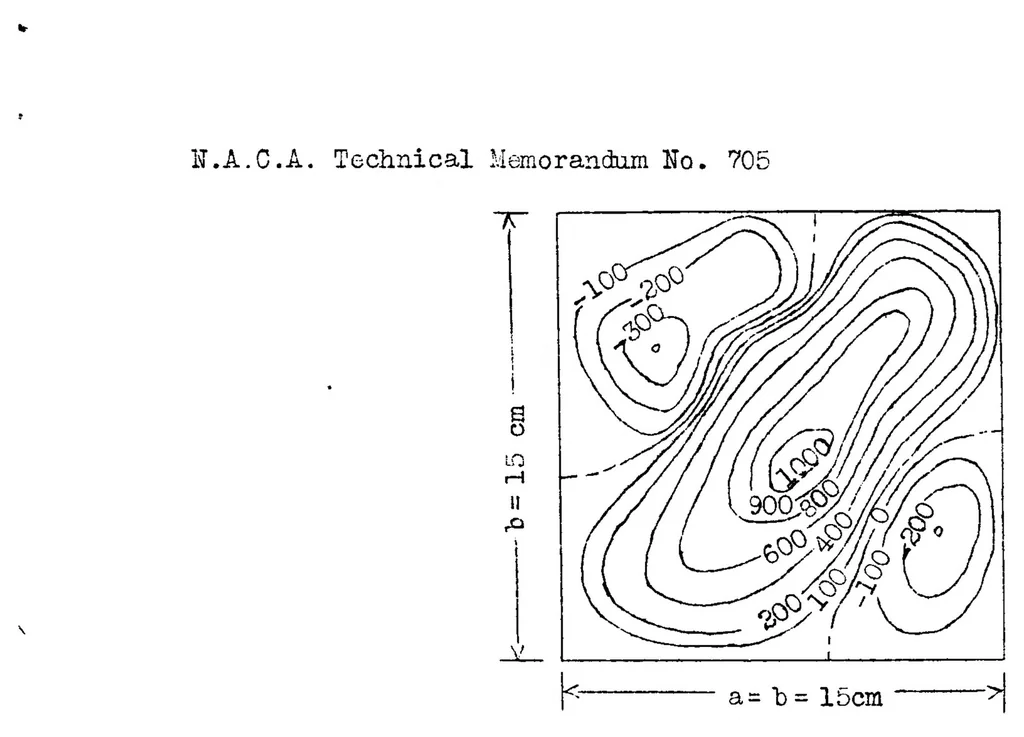

Figure 8.« Test data; contour lines of Truckling surface of a C.3 ™i gage Square dural plate at P= 50 kg (= 3.2 Pkrf) Figure 9.- Test data! contour map of a 0.2 mv. gage dural plate (Va= 1/2) "by P=: 42 kg (= 8.47 Pj^f ). (Discrepancy of buckling versus P = 2 kg) \< a=: 3lD= 45 cm ^ Figure 10,-…
