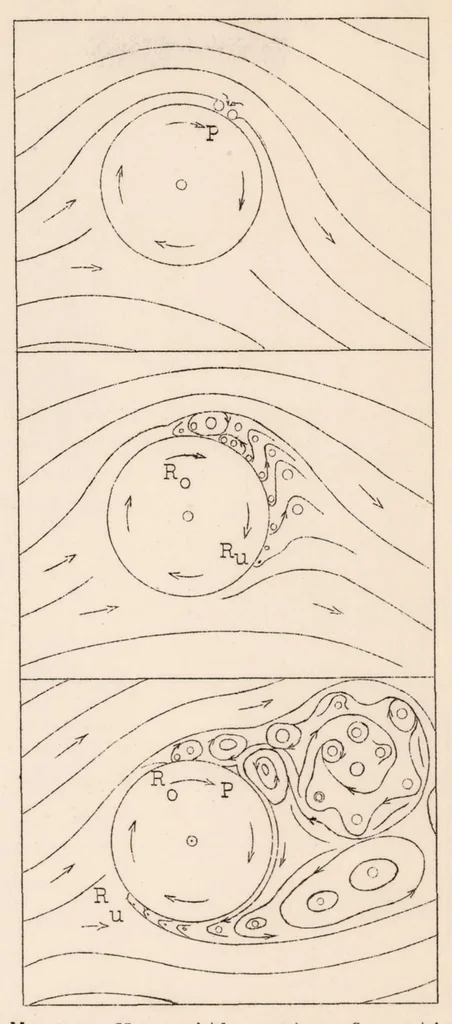

0f N.A.C.A. Technical Memorandum No.567 Figs.15,16 & 17 … Figs.15,16,17 Magnus flow with vortex formation in three stages according to motion pictures.P,critical point at which the vortex formation begins.R_,upper line of rotation. R,lower line of rotation.
