The standard electrical dictionary : a popular encyclopaedia of words and terms used in the practice of electrical engineering (1898)
Sloane, T. O'Conor (Thomas O'Conor), 1851-1940 · London : Crosby Lockwood and Son · leaf 258

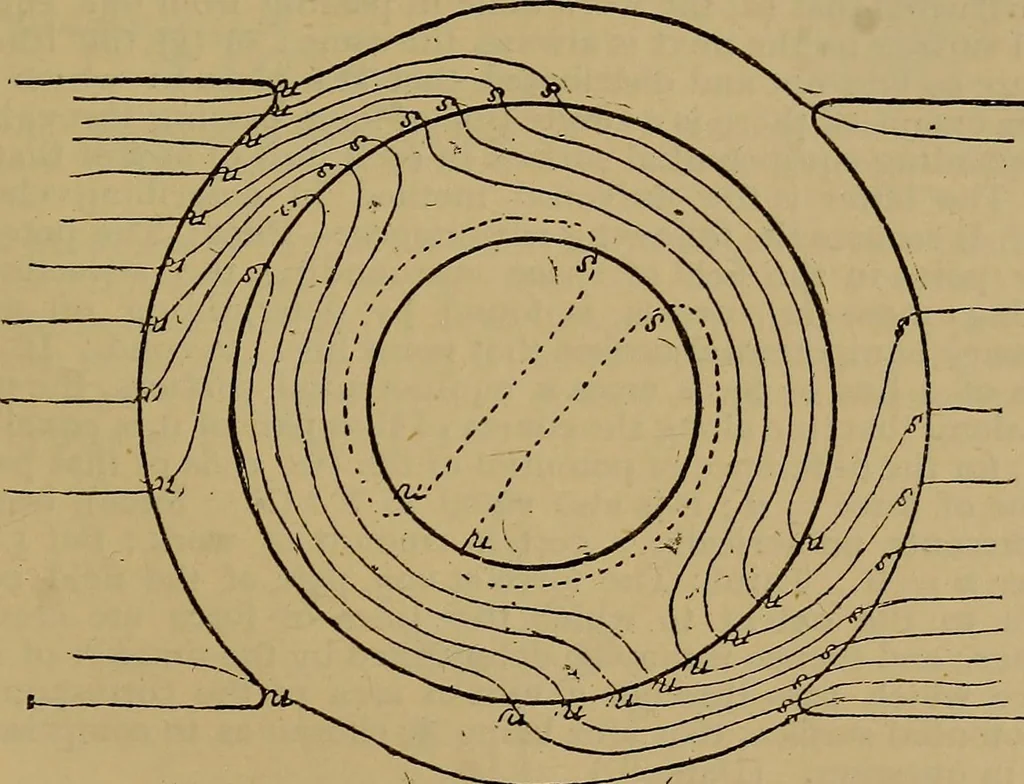

Fig, i6g. Distortion of Field in a Ring Armature of an Active Dynamo. south polarity respectively. The distorted lines must be regarded asresultants of the two induced polarities of the armature, one polarity … ^^ -.-„.^«/^<* Fig. 170. Distortion of Field in a Ring Armature of an Active Motor. due to the induction of the field, the other to the induction fromits own windings. The positions of the brushes have much to do 254 STANDARD ELECTRICAL DICTIONARY. with determining the amount and degree of…
Electricity
