Van Kannel Revolving Door Co., "G.W. Gaden" · Van Kannel Revolving Door Co.;"G.W. Gaden" · leaf 12

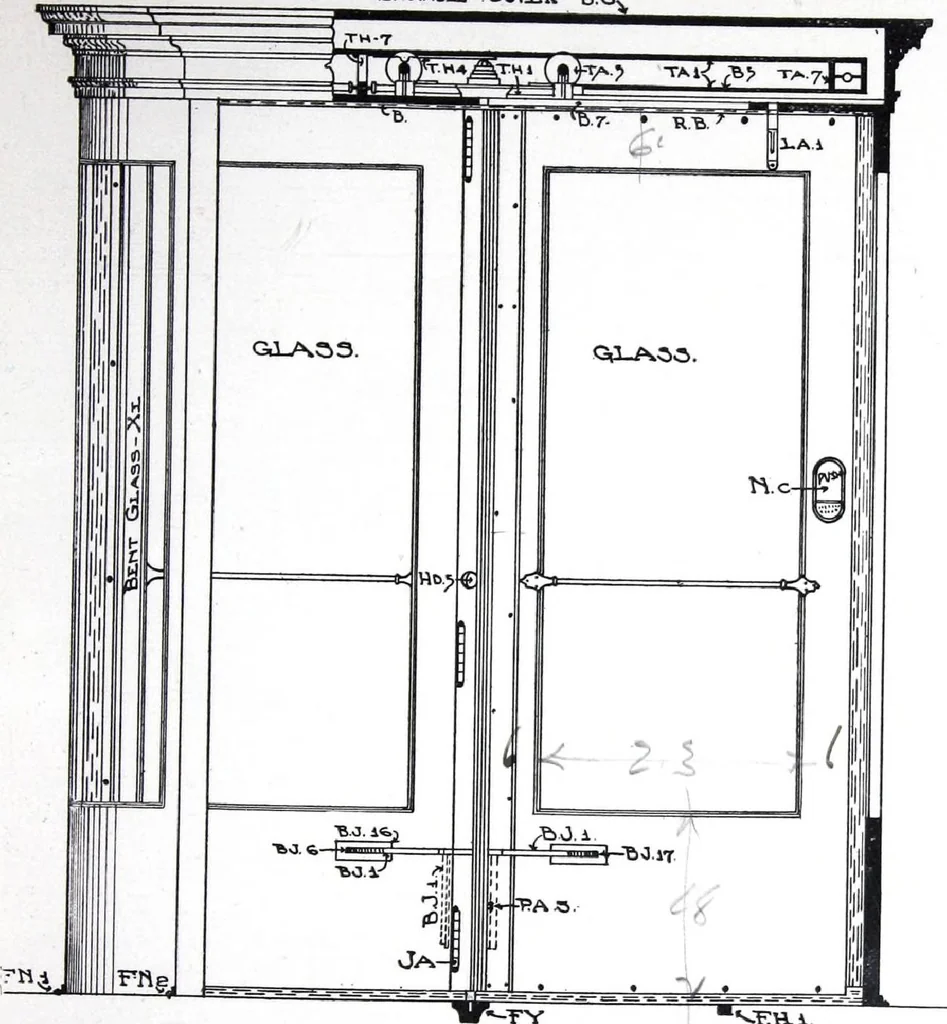

fied. Each wing to be equipped with adjustable weather stripping at outer edge, top andbottom. The stripping at top to be best quahty extra heavy felt,—stripping at outer edgeto be specially molded rubber, tipped with best quality ol:hea\7 felt,—stripping at bottomto be plain flexible rubber. All… … Scale %-! Sectional Elevation •<f:ai. Fig. 8 OPERATION OF STANDARD STYLE **C REVOLVING DOOR ■ ■ ^!,/^^^ ^ ^/gs. 8 and 9, the revolving wings are constructed so that the twowmgs C1 are fastened together at the center to form one complete door across the opening1 fie two wmgs C2are hmged to the…
