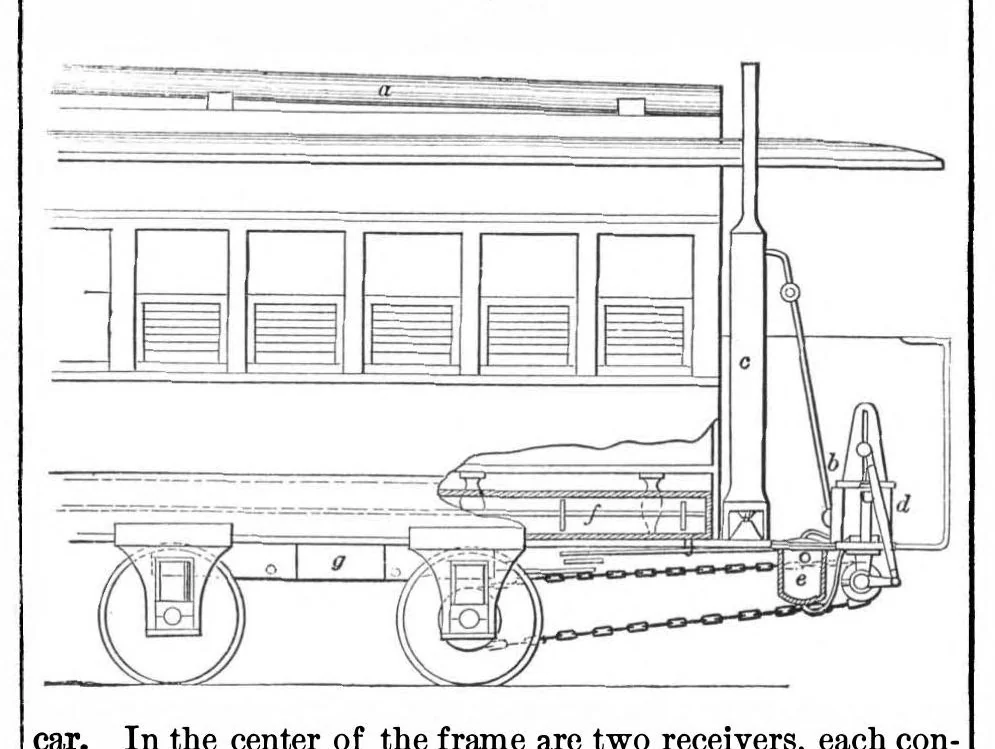

sed air, contained truck are coupled by connecting rods, N, and the rear axle, and machinery of the same. The boiler is upright, and is J, which is cranked, is worked as a driver by a pair of oscil- Fig. 9. Fig. 4. lating engines. Todd’s combined dummy and car, Figs. 5 and 6, has a main lower frame… … CERCA car. In the center of the frame are two receivers, each con- taining 30 cubic feet of water. Below the buffer beams are screw couplings and stop valves with perforated pipes run- ning right through the receivers. The wheels are 24 inches diameter, placed 4 feet 6 inches between centers.…
