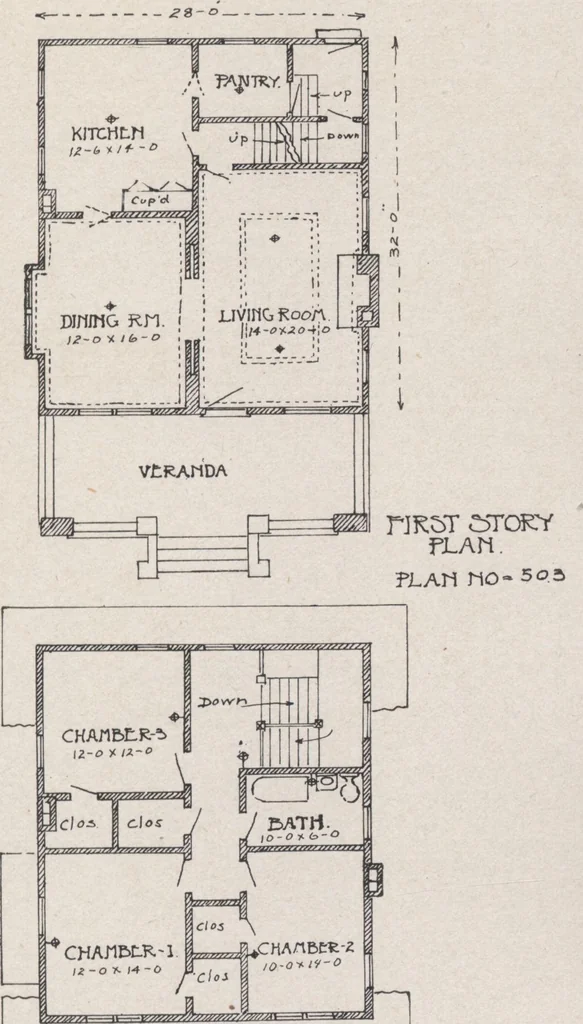

PLAN NO. 503 This bungalow, 28 front by 32 ft. deep, has 6 rooms, bath room and plentyof closet room. The height of the ceilings are: Basement 8, first floor 9 andthe second floor 8. Cost of plans, $12.00. Cost of building, about $2,600.00. DWELLING HOUSES AND BUNGALOWS … 108 PLAN8 AND CONSTRUCTION OF 270 yards of exterior plastering350 cu. ft. of concrete footing880 sq. ft. cement floor3,700 brick for cross wall6,500 brick for chimneys 64 ft. chimney tile 8 x 1228 ft. chimney tile 8 x S122 lin. ft. 6 x 8 for sills 50 2 X 10 X 14 for first floor joist 6 on X 10 X 12…
