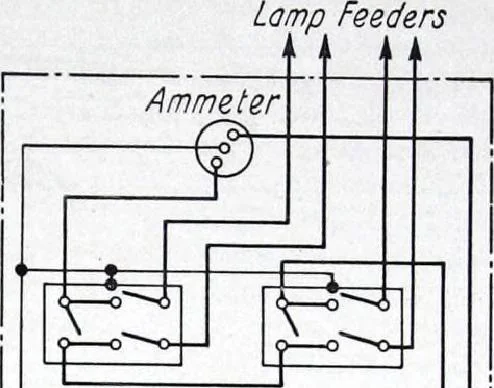

vementof the secondary coil toward the primary coil whenthe power is interrupted. A dashpot is also recom-mended for use on a regulator operating under theseconditions or with arc lamps, and can be furnishedat an additional hst price of $15.00 Instructions—Complete instructions for its oper-ation… … Type I Oil 3w.3R3.l ZHandleTypzl Oil3w. EP.S.T. ■o o ■o o GrounijFrame 6r. D Fuse^ i AAAAA Constant Current i ..Regulator. 2200 Volt Incoming Line Diagram of Connections for Single-CircuitRegulator and Two-Circuit Panel The control panels resemble in general construc-tion and design the panels…
