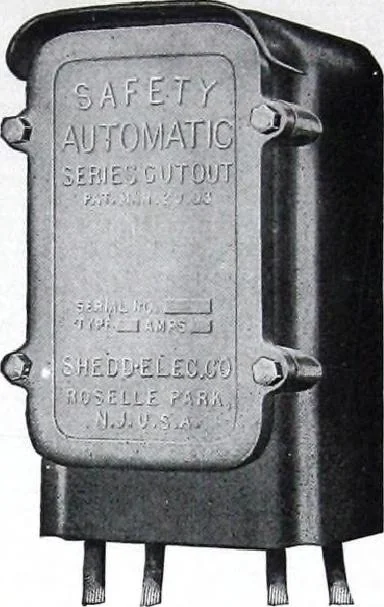

copper contacts at either end, which arc thor-oughly insulated from each other by a high-tensionporcelain insulator. These contacts normally restupon the f^at contact plates mounted upon the rear ofthe two large porcelain insulators, these insulatorsbeing firmly attached to the supporting slab.… … Fig. 1—Safi^ty Automatic SeriesCUTotJT, Complete Cutout is protecting- Mounted upon the front ofthe large porcelain insulators, and well insulatedfrom the rear flat contacts, are two supports, soconstructed as to hold the carbons in such a positionas to form an adjustable spark gap. From below…
