Meadowcroft, Wm. H. (William Henry), b. 1853 · New York & London, Harper & brothers · leaf 126

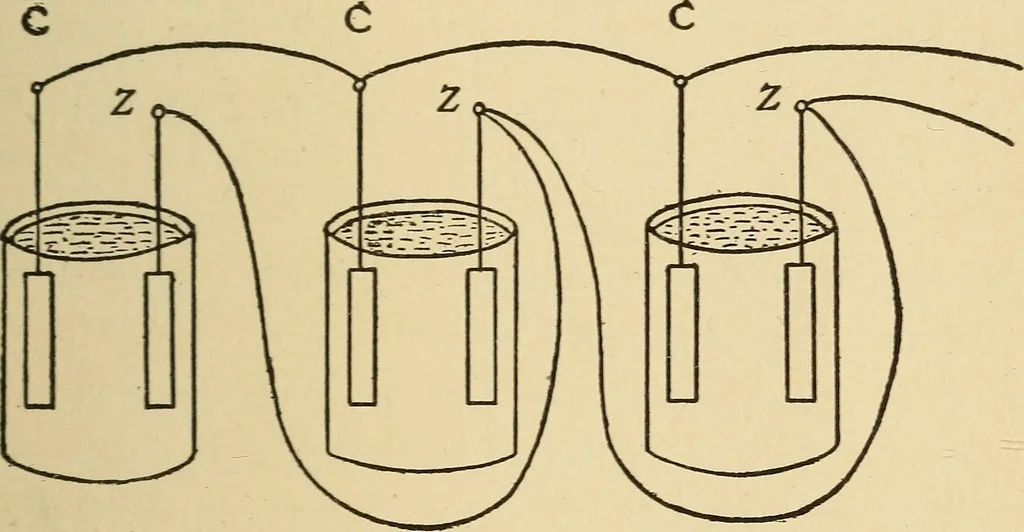

numberof volts—that is to say, there should be cal-culated about two volts for each cell and anallowance made for drop in pressure. CONNECTING IN MULTIPLE There is another way of connecting bat-teries, and that is to obtain a larger number 108 BATTERIES of amperes. This is called connecting… … Fig. 33 of the second to that of the third; thenwe connect the zinc of the first to thatof the second, and the zinc of the secondto that of the third, as shown in the sketch.(Fig. 33.) We then attach a wire to the zinc and oneto the carbon in the third cell, and we thencan obtain from these two…
Electricity
