The A B C of vacuum tubes in radio reception; an elementary and practical book on the theory and operation of vacuum tubes as detectors and amplifiers. Explains non-mathematically the fundamental principles upon which all vacuum tube circuits are based. Includes practical circuits and practical questions and answers. It is written especially for the beginner. All electrical and radio terms are fully explained (1922)
Lewis, Elmer Hugh, 1889- · New York, Norman W. Henley Pub. Co. · leaf 103

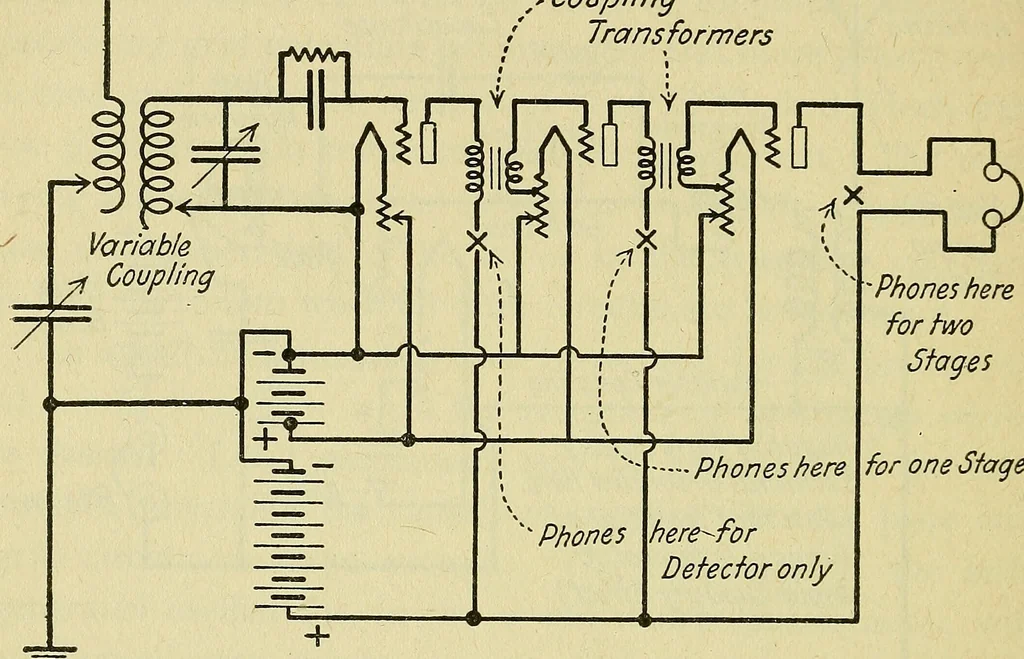

ght portion ofthe characteristic curve in the case of each of the amplifiertubes in order to avoid distortion effects. This is done byapplying a normal negative potential to the grids in the manner 104 A B C OF VACUUM TUBES shown and by adjusting the plate battery voltage and filamentcurrent to the… … for one Stage Fig. 43—Two Circuit Receiver with Two-Stage Audio-frequency Amplifier. No Regeneration. necessary to vary the plate battery voltage from time to timeas the filament ages. The coupling transformers have closed iron cores like theillustration of Fig. 44. The upper Fig. 45 shows a two…
Vacuum-tubes · Radio
