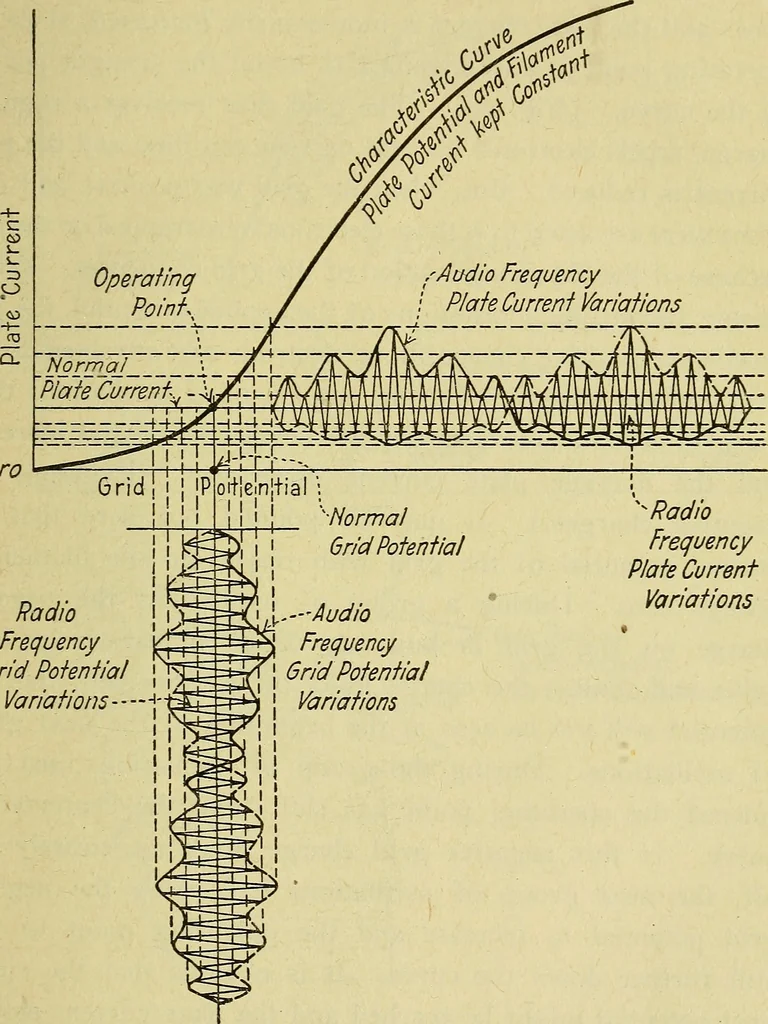

d potential. If a small condenser is connected into the gridcircuit close to the grid, however, the rectification of grid cur-rent is actual. There is also apparent rectification of theplate current variations. The mode of functioning is some-what different, however, when a grid condenser is used.… … RadioFrequencyGrid PotentialVariations—\ NRadio FrequencyPlate Current Variations Fig. 25—Detection of voice modulated continuous oscillations at a varying group frequency. 68 A B C OF VACUUM TUBES frequency alternating potentials are applied to the grid throughthe grid condenser. When the grid…
